RM36D0EC _58 Vehicle Interior _083104 HEATING / AIR CONDITIONING _0403065 BLOWER UNIT A

HEATING / AIR CONDITIONING  BLOWER UNIT  INSTALLATION


PROCEDURE

Hide 87130D 1.INSTALL BLOWER ASSEMBLY

a.

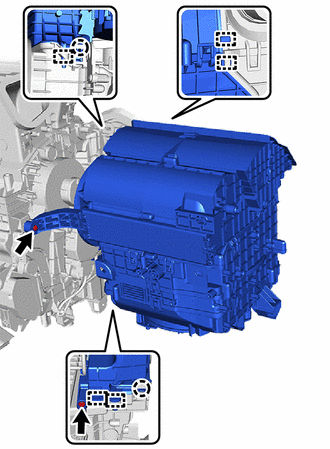

E410026

Attach the guide and claw.


b.

Install the blower assembly with the 2 screws.


c.

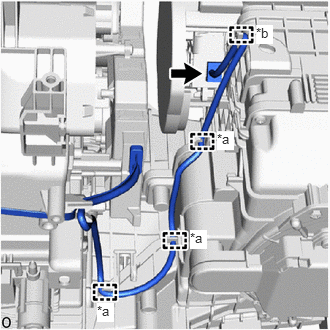

E410025C01
1.01,3.156 1.188,3.354 0.177,0.198 10 true *a 1.979,2.396 2.156,2.594 0.177,0.198 10 true *a 2.26,1.365 2.438,1.563 0.177,0.198 10 true *a 2.667,0.26 2.844,0.458 0.177,0.198 10 true *b
*a Clamp
*b Guide


Attach the clamp and guide.


d.

Connect the connector.


Hide 87201 2.INSTALL NO. 1 AIR DUCT SUB-ASSEMBLY (for SFTM Made)

a.

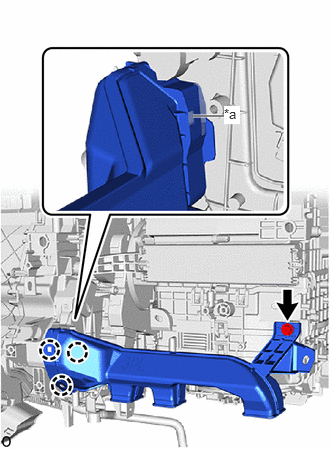

E407641C01
2.01,1.208 2.344,1.208 true 2.333,1.104 2.5,1.292 0.167,0.188 10 true *a
*a Hidden Claw


Attach the claw.


b.

Install the No. 1 air duct sub-assembly with the screw.

NOTICE:
·

If the fitting part of the No. 1 air duct sub-assembly has been cracked or deformed during removal, make sure to replace the air duct with a new one. Failure to do so may cause the No. 1 air duct sub-assembly to fall off or noise to occur.

·

Make sure there are no cracks in the duct.




Hide 87211A 3.INSTALL NO. 2 AIR DUCT (for GTMC Made)

HINT:

Use the same procedure described as for No. 1 air duct sub-assembly (for SFTM Made).


Hide 4.INSTALL AIR CONDITIONING UNIT ASSEMBLY

·

for A25B-FXS:

Click hereVehicle Interior>HEATING / AIR CONDITIONING>AIR CONDITIONING UNIT (for A25B-FXS)>INSTALLATION

·

for A25D-FXS:

Click hereVehicle Interior>HEATING / AIR CONDITIONING>AIR CONDITIONING UNIT (for A25D-FXS)>INSTALLATION

·

for M20C-FKS:

Click hereVehicle Interior>HEATING / AIR CONDITIONING>AIR CONDITIONING UNIT (for M20C-FKS)>INSTALLATION

·

for M20D-FKS:

Click hereVehicle Interior>HEATING / AIR CONDITIONING>AIR CONDITIONING UNIT (for M20D-FKS)>INSTALLATION


Production date from 2021/08

·

for A25F-FXS:

Click hereVehicle Interior>HEATING / AIR CONDITIONING>AIR CONDITIONING UNIT (for A25F-FXS [Production date from 2021/08])>INSTALLATION
