MIRROR (INT)  DIGITAL INNER MIRROR  INSPECTION


PROCEDURE

Hide 87810 1.INSPECT INNER REAR VIEW MIRROR ASSEMBLY

a.

Inspect the operation of the electrochromic inner rear view mirror assembly.

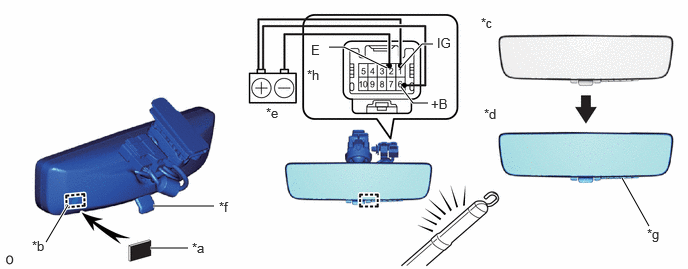

E442160C03
1.594,2.146 2.229,2.146 true 1.563,2.583 1.958,2.583 true 0.708,2.135 0.479,2.521 true 6.479,1.854 6.76,2.354 true 4.177,0.906 4.302,1.073 4.302,1.073 4.458,1.073 true 4.51,0.458 4.396,0.458 4.396,0.458 4.177,0.698 true 3.427,0.49 3.583,0.49 3.583,0.49 4.031,0.708 true 2,2.5 2.188,2.677 0.188,0.177 10 false *a 0.333,2.479 0.563,2.667 0.229,0.188 10 false *b 5.01,0.156 5.271,0.375 0.26,0.219 10 false *c 5.042,1.104 5.292,1.313 0.25,0.208 10 false *d 2.771,1.094 2.979,1.292 0.208,0.198 10 false *e 2.281,2.073 2.5,2.271 0.219,0.198 10 false *f 6.74,2.354 7.031,2.583 0.292,0.229 10 false *g 4.49,1 4.708,1.208 0.219,0.208 10 false +B 3.198,0.698 3.438,0.906 0.24,0.208 10 false *h 3.24,0.438 3.396,0.646 0.156,0.208 10 false E 4.552,0.365 4.76,0.563 0.208,0.198 10 false IG
*a Black Colored Tape *b Forward Sensor
*c Bright *d Dark
*e Auxiliary Battery *f Mode Selection Lever
*g Cursor Operation Switch *h Component without harness connected
(Inner Rear View Mirror Assembly)


i.

Connect a positive (+) lead from the auxiliary battery to terminal 1 (IG) and terminal 6 (+B) and a negative (-) lead to terminal 2 (E).


ii.

For digital mirror mode, operate the mode selection lever to switch it to optical mirror mode.


iii.

Attach black colored tape to the forward sensor to prevent it from sensing.

NOTICE:

Clean the forward sensor when detach the black colored tape.



iv.

Press the MENU switch on the selection switch and operate the cursor operation switch to change the mirror surface reflection condition to automatic glare-resistant mode ON (operating condition).


v.

Light up the mirror with an electric light, and check that the mirror surface changes from bright to dark.

OK:

Mirror surface changes from bright to dark.


If the result is not as specified, replace the inner rear view mirror assembly.
