RM36D0EC _58 Vehicle Interior _083095 LIGHTING (INT) _0400600 FRONT DOOR COURTESY SWITCH A

LIGHTING (INT) FRONT DOOR COURTESY SWITCH INSTALLATION

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.

PROCEDURE

Hide Display 84233 1.INSTALL FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY

a.

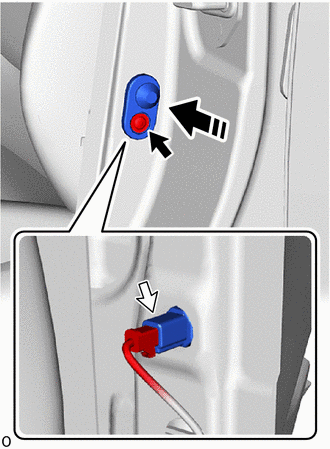

E405800C02

0,0 0,0 false

	Install in this Direction
	"TORX" Screw
	Connector

Using T30 "TORX" socket wrench, install the front door courtesy light switch assembly with the "TORX" screw.

Torque:: 6.3 N*m (64 kgf*cm, 56 in.*lbf)

b.

Connect the connector.

Hide Display 62414A 2.INSTALL LOWER CENTER PILLAR GARNISH LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202004,202304,_58,_083106,_0400609,RM100000001MYUI_01_0001,202304,999999,_58,_083106,_0400609,RM1000000029RSX_01_0001,

Hide Display 73220 3.INSTALL FRONT SEAT OUTER BELT ASSEMBLY LH (FLOOR ANCHOR)

Click hereVehicle Interior>SEAT BELT>FRONT SEAT OUTER BELT ASSEMBLY>INSTALLATION202004,202104,_58,_083103,_0401772,RM100000001MO78_01_0079,202104,202304,_58,_083103,_0401772,RM100000001WOXB_01_0079,202304,202405,_58,_083103,_0401772,RM1000000029RQM_01_0079,202405,999999,_58,_083103,_0401772,RM100000002LTXY_01_0079,

Hide Display 73233 4.INSTALL LAP BELT OUTER ANCHOR COVER

Click hereVehicle Interior>SEAT BELT>FRONT SEAT OUTER BELT ASSEMBLY>INSTALLATION202004,202104,_58,_083103,_0401772,RM100000001MO78_01_0070,202104,202304,_58,_083103,_0401772,RM100000001WOXB_01_0070,202304,202405,_58,_083103,_0401772,RM1000000029RQM_01_0070,202405,999999,_58,_083103,_0401772,RM100000002LTXY_01_0070,

Hide Display 62332C 5.INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR OPENING TRIM WEATHERSTRIP>INSTALLATION201910,999999,_59,_083093,_0403690,RM100000001JUGI_02_0001,

Hide Display 67918E 6.INSTALL REAR DOOR SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202004,202304,_58,_083106,_0400609,RM100000001MYUI_01_0033,202304,999999,_58,_083106,_0400609,RM1000000029RSX_01_0033,

Hide Display 72693 7.INSTALL REAR SEAT CUSHION LOCK HOOK (for Gasoline Model)

·

for SFTM Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>INSTALLATION202004,999999,_58,_083102,_0419059,RM100000001MO2U_01_0038,

·

for GTMC Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>INSTALLATION202004,999999,_58,_083102,_0419060,RM100000001MO2Z_01_0038,

Hide Display 8.INSTALL BENCH TYPE REAR SEAT CUSHION ASSEMBLY (for Gasoline Model)

·

for SFTM Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>INSTALLATION202004,999999,_58,_083102,_0419059,RM100000001MO2U_01_0025,

·

for GTMC Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>INSTALLATION202004,999999,_58,_083102,_0419060,RM100000001MO2Z_01_0025,

Hide Display 62312B 9.INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR OPENING TRIM WEATHERSTRIP>INSTALLATION201910,999999,_59,_083093,_0403688,RM100000001JUGB_02_0001,

Hide Display 67914B 10.INSTALL FRONT DOOR SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202004,202304,_58,_083106,_0400609,RM100000001MYUI_01_0035,202304,999999,_58,_083106,_0400609,RM1000000029RSX_01_0035,
