RM36D0EC _58 Vehicle Interior _083095 LIGHTING (INT) _0400601 REAR DOOR COURTESY SWITCH A

LIGHTING (INT) REAR DOOR COURTESY SWITCH REMOVAL

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.

PROCEDURE

Hide Display 1.REMOVE BENCH TYPE REAR SEAT CUSHION ASSEMBLY

for SFTM Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>REMOVAL202004,999999,_58,_083102,_0419059,RM100000001MO2R_01_0022,

for GTMC Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>REMOVAL202004,999999,_58,_083102,_0419060,RM100000001MO2W_01_0022,

Hide Display 72693 2.REMOVE REAR SEAT CUSHION LOCK HOOK

for SFTM Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>REMOVAL202004,999999,_58,_083102,_0419059,RM100000001MO2R_01_0001,

for GTMC Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>REMOVAL202004,999999,_58,_083102,_0419060,RM100000001MO2W_01_0001,

Hide Display 3.REMOVE REAR SEATBACK ASSEMBLY RH

for SFTM Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>REMOVAL202004,999999,_58,_083102,_0419059,RM100000001MO2R_01_0011,

for GTMC Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>REMOVAL202004,999999,_58,_083102,_0419060,RM100000001MO2W_01_0011,

Hide Display 73350C 4.REMOVE REAR CENTER SEAT OUTER BELT ASSEMBLY (FLOOR ANCHOR) (for RH Side)

for SFTM Made:

Click hereVehicle Interior>SEAT BELT>REAR CENTER SEAT OUTER BELT ASSEMBLY (for SFTM Made)>REMOVAL202004,999999,_58,_083103,_0419079,RM100000001MO7O_01_0085,

for GTMC Made:

Click hereVehicle Interior>SEAT BELT>REAR CENTER SEAT OUTER BELT ASSEMBLY (for GTMC Made)>REMOVAL202004,999999,_58,_083103,_0419080,RM100000001MO7S_01_0085,

Hide Display 5.REMOVE REAR SEATBACK ASSEMBLY RH (for RH Side)

for SFTM Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>REMOVAL202004,999999,_58,_083102,_0419059,RM100000001MO2R_01_0011,

for GTMC Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>REMOVAL202004,999999,_58,_083102,_0419060,RM100000001MO2W_01_0011,

Hide Display 67918E 6.REMOVE REAR DOOR SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202004,202304,_58,_083106,_0400609,RM100000001MYUH_01_0071,202304,999999,_58,_083106,_0400609,RM1000000029RST_01_0071,

Hide Display 71304C 7.REMOVE REAR SEAT BACK HINGE SUB-ASSEMBLY LH

for SFTM Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>REMOVAL202004,999999,_58,_083102,_0419059,RM100000001MO2R_01_0032,

for GTMC Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>REMOVAL202004,999999,_58,_083102,_0419060,RM100000001MO2W_01_0032,

Hide Display 58467H 8.REMOVE NO. 3 BATTERY SERVICE COVER BOARD (for HV Model)

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>BATTERY BLOWER>REMOVAL202004,999999,_51,_083048,_0400707,RM100000001MYUR_02_0130,

Hide Display 58466J 9.REMOVE NO. 2 BATTERY SERVICE COVER BOARD (for HV Model , RH Side)

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>BATTERY BLOWER>REMOVAL202004,999999,_51,_083048,_0400707,RM100000001MYUR_02_0132,

Hide Display 73706 10.REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH

Click hereVehicle Interior>SEAT BELT>CHILD RESTRAINT SEAT ANCHOR BRACKET>REMOVAL202004,999999,_58,_083103,_0401777,RM100000001MO7X_01_0002,

Hide Display 62332C 11.REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH

HINT:: Pull back the rear door opening trim weatherstrip LH so that the rear seat side garnish LH can be removed.; Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR OPENING TRIM WEATHERSTRIP>REMOVAL201910,999999,_59,_083093,_0403690,RM100000001JUGH_02_0002,

Hide Display 62552F 12.REMOVE REAR SEAT SIDE GARNISH LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202004,202304,_58,_083106,_0400609,RM100000001MYUH_01_0026,202304,999999,_58,_083106,_0400609,RM1000000029RST_01_0026,

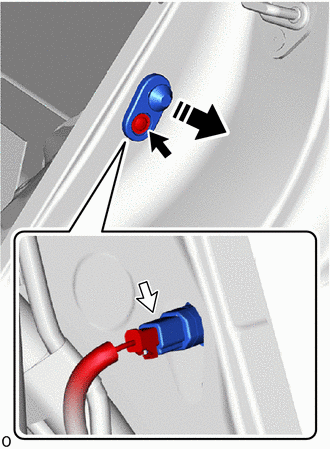

Hide Display 84234 13.REMOVE REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY

0,0 0,0 false

	Remove in this Direction
	"TORX" Screw
	Connector

Disconnect the connector.

Using T30 "TORX" socket wrench, remove the "TORX" screw and rear door courtesy light switch assembly.
