RM36D0EC _59 Vehicle Exterior _083096 LIGHTING (EXT) _0402623 HEADLIGHT ASSEMBLY(for Triple Beam Headlight) G

LIGHTING (EXT)  HEADLIGHT ASSEMBLY(for Triple Beam Headlight)  INSPECTION


PROCEDURE

Hide 1.INSPECT HEADLIGHT ASSEMBLY LH (for Type A)

a.

Inspect the headlight assembly LH.

i.

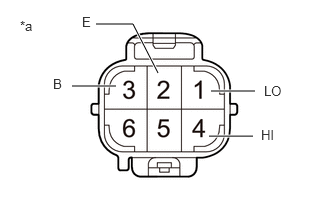

B510173C01
2.198,0.948 2.656,0.948 true 1,0.25 1.385,0.25 1.385,0.25 1.646,0.76 true 0.75,0.896 1.208,0.896 true 2.177,1.417 2.635,1.417 true 0.208,0.188 0.521,0.344 0.313,0.156 10 false *a 2.75,0.865 3.208,1.063 0.458,0.198 10 false LO 0.854,0.146 1.01,0.344 0.156,0.198 10 false E 0.552,0.792 1.01,0.99 0.458,0.198 10 false B 2.719,1.323 3.177,1.521 0.458,0.198 10 false HI
*a Component without harness connected
(Headlight Assembly LH)


Apply auxiliary battery voltage to the connector and check the light illumination condition.

OK:
Auxiliary Battery Connection Specified Condition

If the result is not as specified, replace the headlight assembly LH.

Auxiliary battery positive (+) → 1 (LO)
Auxiliary battery negative (-) → 2 (E) 		Lo beam illuminates
Auxiliary battery positive (+) → 4 (HI)
Auxiliary battery negative (-) → 2 (E) 		High beam illuminates
Auxiliary battery positive (+) → 3 (B)
Auxiliary battery negative (-) → 2 (E) 		Daytime running light illuminates



ii.

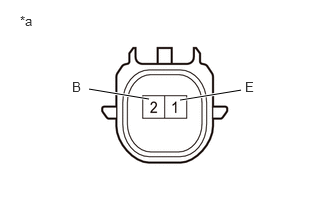

B555597C01
1.552,1.031 0.927,0.927 true 2.51,0.938 1.875,1.042 true 0.75,0.823 0.906,1.021 0.156,0.198 10 false B 2.552,0.823 2.708,1.021 0.156,0.198 10 false E 0.208,0.135 0.521,0.292 0.313,0.156 10 false *a
*a Component without harness connected
(Headlight Assembly LH)


Apply auxiliary battery voltage to the connector and check the light illumination condition.

OK:
Auxiliary Battery Connection Specified Condition

If the result is not as specified, replace the headlight assembly LH.

Auxiliary battery positive (+) → 2 (B)
Auxiliary battery negative (-) → 1 (E) 		Clearance light illuminates




Hide 2.INSPECT HEADLIGHT ASSEMBLY RH (for Type A)

a.
B510173C01
2.198,0.948 2.656,0.948 true 1,0.25 1.385,0.25 1.385,0.25 1.646,0.76 true 0.75,0.896 1.208,0.896 true 2.177,1.417 2.635,1.417 true 0.208,0.188 0.521,0.344 0.313,0.156 10 false *a 2.75,0.865 3.208,1.063 0.458,0.198 10 false LO 0.854,0.146 1.01,0.344 0.156,0.198 10 false E 0.552,0.792 1.01,0.99 0.458,0.198 10 false B 2.719,1.323 3.177,1.521 0.458,0.198 10 false HI
*a Component without harness connected
(Headlight Assembly RH)


Inspect the headlight assembly RH.

i.

Apply auxiliary battery voltage to the connector and check the light illumination condition.

OK:
Auxiliary Battery Connection Specified Condition

If the result is not as specified, replace the headlight assembly RH.

Auxiliary battery positive (+) → 1 (LO)
Auxiliary battery negative (-) → 2 (E) 		Lo beam illuminates
Auxiliary battery positive (+) → 4 (HI)
Auxiliary battery negative (-) → 2 (E) 		High beam illuminates
Auxiliary battery positive (+) → 3 (B)
Auxiliary battery negative (-) → 2 (E) 		Daytime running light illuminates



ii.
B555597C01
1.552,1.031 0.927,0.927 true 2.51,0.938 1.875,1.042 true 0.75,0.823 0.906,1.021 0.156,0.198 10 false B 2.552,0.823 2.708,1.021 0.156,0.198 10 false E 0.208,0.135 0.521,0.292 0.313,0.156 10 false *a
*a Component without harness connected
(Headlight Assembly RH)


Apply auxiliary battery voltage to the connector and check the light illumination condition.

OK:
Auxiliary Battery Connection Specified Condition

If the result is not as specified, replace the headlight assembly RH.

Auxiliary battery positive (+) → 2 (B)
Auxiliary battery negative (-) → 1 (E) 		Clearance light illuminates




Hide 3.INSPECT HEADLIGHT ASSEMBLY LH (for Type B)

a.

Inspect the headlight assembly LH.

i.

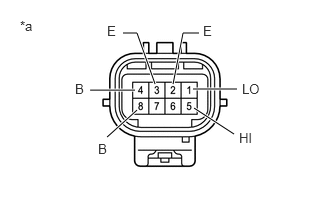

B553439C02
2.01,0.927 2.469,0.927 true 2.073,0.344 1.906,0.344 1.906,0.344 1.802,0.875 true 2.021,1.125 2.438,1.396 true 1.115,1.427 1.427,1.146 true 0.938,0.938 1.406,0.938 true 1.281,0.344 1.427,0.344 1.427,0.344 1.615,0.875 true 0.208,0.188 0.521,0.344 0.313,0.156 10 false *a 2.521,0.844 2.979,1.042 0.458,0.198 10 false LO 2.49,1.354 2.948,1.552 0.458,0.198 10 false HI 2.115,0.24 2.271,0.438 0.156,0.198 10 false E 1.021,1.469 1.479,1.667 0.458,0.198 10 false B 0.781,0.844 1.24,1.042 0.458,0.198 10 false B 1.115,0.24 1.271,0.438 0.156,0.198 10 false E
*a Component without harness connected
(Headlight Assembly LH)


Apply auxiliary battery voltage to the connector and check the light illumination condition.

OK:
Auxiliary Battery Connection Specified Condition

If the result is not as specified, replace the headlight assembly LH.

Auxiliary battery positive (+) → 1 (LO)
Auxiliary battery negative (-) → 3 (E) 		Lo beam illuminates
Auxiliary battery positive (+) → 5 (HI)
Auxiliary battery negative (-) → 3 (E) 		High beam illuminates
Auxiliary battery positive (+) → 4 (B)
Auxiliary battery negative (-) → 3 (E) 		Daytime running light illuminates
Auxiliary battery positive (+) → 8 (B)
Auxiliary battery negative (-) → 2 (E) 		Clearance light illuminates




Hide 4.INSPECT HEADLIGHT ASSEMBLY RH (for Type B)

a.
B553439C02
2.01,0.927 2.469,0.927 true 2.073,0.344 1.906,0.344 1.906,0.344 1.802,0.875 true 2.021,1.125 2.438,1.396 true 1.115,1.427 1.427,1.146 true 0.938,0.938 1.406,0.938 true 1.281,0.344 1.427,0.344 1.427,0.344 1.615,0.875 true 0.208,0.188 0.521,0.344 0.313,0.156 10 false *a 2.521,0.844 2.979,1.042 0.458,0.198 10 false LO 2.49,1.354 2.948,1.552 0.458,0.198 10 false HI 2.115,0.24 2.271,0.438 0.156,0.198 10 false E 1.021,1.469 1.479,1.667 0.458,0.198 10 false B 0.781,0.844 1.24,1.042 0.458,0.198 10 false B 1.115,0.24 1.271,0.438 0.156,0.198 10 false E
*a Component without harness connected
(Headlight Assembly RH)


Inspect the headlight assembly RH.

i.

Apply auxiliary battery voltage to the connector and check the light illumination condition.

OK:
Auxiliary Battery Connection Specified Condition

If the result is not as specified, replace the headlight assembly RH.

Auxiliary battery positive (+) → 1 (LO)
Auxiliary battery negative (-) → 3 (E) 		Lo beam illuminates
Auxiliary battery positive (+) → 5 (HI)
Auxiliary battery negative (-) → 3 (E) 		High beam illuminates
Auxiliary battery positive (+) → 4 (B)
Auxiliary battery negative (-) → 3 (E) 		Daytime running light illuminates
Auxiliary battery positive (+) → 8 (B)
Auxiliary battery negative (-) → 2 (E) 		Clearance light illuminates
