General
_083136
MAINTENANCE
_0403538
BACK-UP LIGHT BULB
A
MAINTENANCE BACK-UP LIGHT BULB INSTALLATION
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for the RH and LH sides.
·The procedure listed below is for the LH side.
PROCEDURE
81550N
1.INSTALL BACK-UP LIGHT BULB
a.
0,0 0,0
false
|

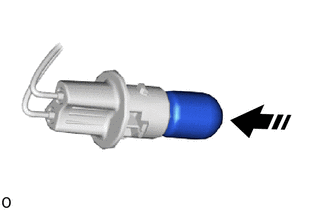

Install in this Direction |
Install the back-up light bulb to the bulb socket.
b.
for Type A:
i.
1.781,1.771 1.438,1.438
true
1.333,1.583 1.042,1.833
true
1.073,3.573 0.906,3.896
true
1.688,1.771 1.875,1.958
0.188,0.188
10
true
*a
0.896,1.833 1.094,2.031
0.198,0.198
10
true
*b
0.792,3.906 0.99,4.104
0.198,0.198
10
true
*c

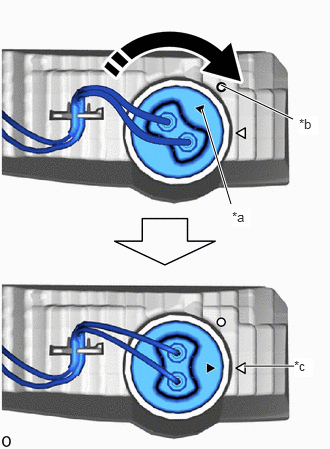

| *a | Matchmark |
| *b | Unlock Position Mark |
| *c | Lock Position Mark |
|
|
Turn in this Direction |
Align the bulb socket with the unlock position mark, and then turn the bulb socket clockwise until the matchmark is aligned with lock position mark and connect the bulb socket.
c.
for Type B:
i.
2.406,2.125 2.104,1.135
true
3.063,3.813 2.542,3.813
true
3.052,1.24 2.302,0.885
true
2.417,2.177 2.604,2.365
0.188,0.188
10
true
*a
3.115,1.208 3.313,1.406
0.198,0.198
10
true
*b
3.063,3.729 3.26,3.927
0.198,0.198
10
true
*c
| *a | Matchmark |
| *b | Unlock Position |
| *c | Lock Position Mark |
|
|
Turn in this Direction |
Align the bulb socket with the unlock position, and then turn the bulb socket clockwise until the matchmark is aligned with lock position mark and connect the bulb socket.
67848
2.INSTALL BACK DOOR SERVICE HOLE COVER LH
a.
Attach the guide and claw and install the back door service hole cover LH.
