SUPPLEMENTAL RESTRAINT SYSTEMS  FRONT SEAT SIDE AIRBAG ASSEMBLY(for GTMC Made Manual Seat)  COMPONENTS

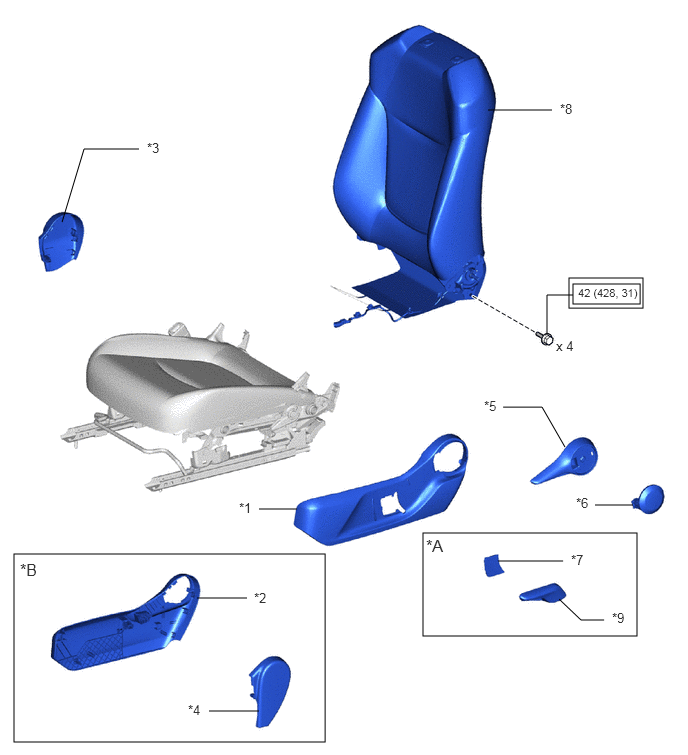

ILLUSTRATION

5.969,2.958 6.667,3.167 0.698,0.208 5.927,2.896 6.698,3.208 0.771,0.313 4.406,5.552 6.635,6.625 2.229,1.073 0.146,5.771 3.385,7.729 3.24,1.958 5.188,5.844 5.865,5.844 false 5.698,3.479 5.698,3.073 5.698,3.073 5.969,3.073 false 5.083,1.146 5.75,1.146 false 0.646,2.313 0.875,1.552 0.875,1.552 1.448,1.552 false 5.885,4.656 5.646,4.24 5.646,4.24 5.24,4.24 false 6.198,5.26 6.594,5.26 false 2.177,7.406 2.698,7.406 false 2.698,5.302 3.094,5.302 false 5.823,6.24 6.052,6.458 6.052,6.458 6.292,6.458 false 2.052,6.229 2.573,6.229 false 5.792,3.521 6.25,3.719 0.458,0.198 10 false x 4 6.021,2.979 6.698,3.177 0.677,0.198 8 false 42 (428, 31) 4.438,5.583 4.813,5.823 0.375,0.24 12 false *A 2.49,5.208 2.802,5.365 0.313,0.156 10 false *1 2.646,6.146 2.958,6.302 0.313,0.156 10 false *2 1.531,1.458 1.844,1.615 0.313,0.156 10 false *3 1.958,7.313 2.271,7.469 0.313,0.156 10 false *4 5.042,4.146 5.354,4.302 0.313,0.156 10 false *5 6,5.156 6.313,5.313 0.313,0.156 10 false *6 5.948,5.75 6.26,5.906 0.313,0.156 10 false *7 5.833,1.052 6.146,1.208 0.313,0.156 10 false *8 6.375,6.354 6.563,6.542 0.188,0.188 10 false *9 0.208,5.833 0.583,6.073 0.375,0.24 12 false *B

*A	for Driver Side	*B	for Front Passenger Side
*1	FRONT SEAT CUSHION SHIELD LH	*2	FRONT SEAT CUSHION SHIELD RH
*3	FRONT SEAT INNER CUSHION SHIELD LH	*4	FRONT SEAT INNER CUSHION SHIELD RH
*5	RECLINING ADJUSTER RELEASE HANDLE LH	*6	RECLINING HINGE COVER LH
*7	SEAT ADJUSTER COVER CAP LH	*8	SEPARATE TYPE FRONT SEATBACK ASSEMBLY
*9	VERTICAL ADJUSTING HANDLE LH	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)	-	-

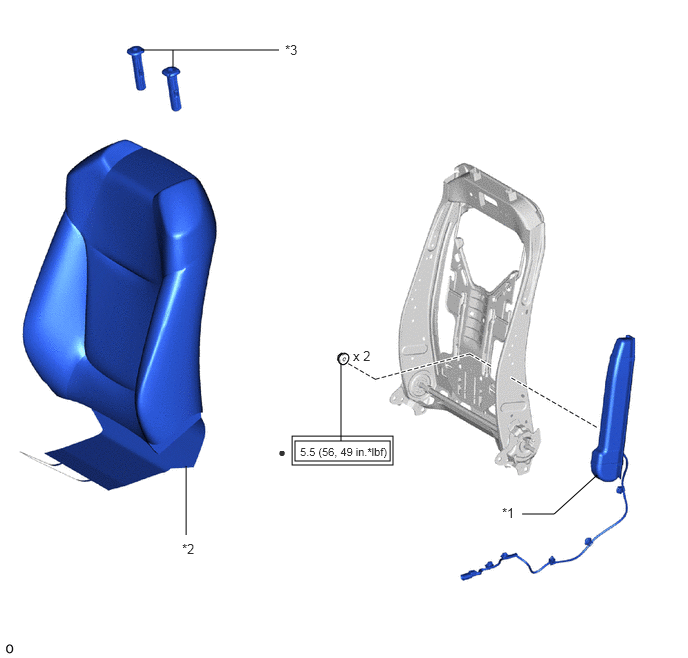

ILLUSTRATION

3.073,4.594 4.063,4.802 0.99,0.208 3.042,4.542 4.094,4.844 1.052,0.302 3.552,4.594 3.552,3.781 false 1.938,5.573 1.938,4.854 false 1.469,0.521 2.906,0.521 false 1.802,0.708 1.802,0.521 false 5.438,5.354 5.771,5.354 5.771,5.354 6.219,4.948 false 3.677,3.625 4.135,3.823 0.458,0.198 10 false x 2 3.125,4.635 4.104,4.833 0.979,0.198 8 false 5.5 (56, 49 in.*lbf) 2.896,4.625 3.052,4.823 0.156,0.198 10 false ● 5.229,5.26 5.542,5.417 0.313,0.156 10 false *1 1.896,5.635 2.208,5.792 0.313,0.156 10 false *2 2.969,0.438 3.281,0.594 0.313,0.156 10 false *3

*1	FRONT SEAT AIRBAG ASSEMBLY LH	*2	SEPARATE TYPE FRONT SEATBACK COVER WITH PAD
*3	FRONT SEAT HEADREST SUPPORT	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)	●	Non-reusable part
