RM36D0EC _59 Vehicle Exterior _083096 LIGHTING (EXT) _0402638 HIGH MOUNTED STOP LIGHT ASSEMBLY A

LIGHTING (EXT)  HIGH MOUNTED STOP LIGHT ASSEMBLY  INSTALLATION


PROCEDURE

Hide 81935D 1.INSTALL CENTER STOP LIGHT CORD ASSEMBLY

a.

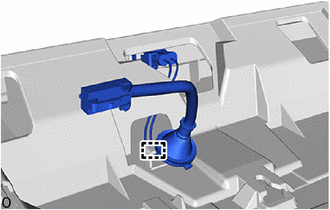

E404097

Attach the wire harness clamp and install the center stop light cord assembly.


Hide 81570 2.INSTALL CENTER STOP LIGHT ASSEMBLY

a.

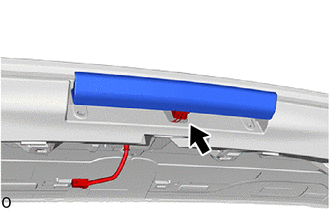

E404098

Connect the connector.


b.

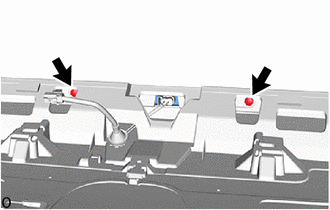

E404096

Install the center stop light assembly with the 2 screws.
