RM36D0EC _59 Vehicle Exterior _083096 LIGHTING (EXT) _0402636 LICENSE PLATE LIGHT ASSEMBLY A

LIGHTING (EXT) LICENSE PLATE LIGHT ASSEMBLY REMOVAL

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH and LH sides.

·

The procedure described below is for the LH side.

Hide Display 76801 1.REMOVE BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY

Hide Display 81270 2.REMOVE LICENSE PLATE LIGHT ASSEMBLY

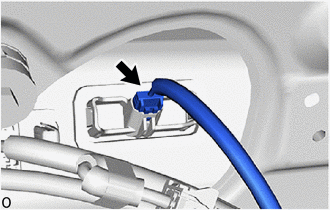

Disconnect the connector.

Detach the claw and remove the license plate light assembly.
