RM36D0EC _59 Vehicle Exterior _083096 LIGHTING (EXT) _0402633 REAR LIGHT ASSEMBLY A

LIGHTING (EXT)  REAR LIGHT ASSEMBLY  REASSEMBLY


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.



PROCEDURE

Hide 76827A 1.INSTALL NO. 2 BACK DOOR GARNISH RETAINER (for Type A)

a.
B555567

Attach the guide.


b.

Install the No. 2 back door garnish retainer with the screw.


Hide 81594A 2.INSTALL REAR LIGHT GASKET LH (for Type A)

a.
B555568

Install a new rear light gasket LH.


Hide 81595 3.INSTALL REAR LIGHT SOCKET AND WIRE LH (for Type A)

a.
B555566

Attach the claw and install the rear light socket and wire LH.


b.

Attach the clamp.

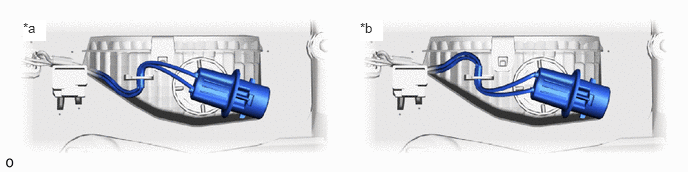

B557687C01
3.75,0.208 3.99,0.427 0.24,0.219 10 true *b 0.24,0.208 0.479,0.427 0.24,0.219 10 true *a
*a Correct *b Incorrect



c.

Connect the connector.


Hide 81550N 4.INSTALL BACK-UP LIGHT BULB

a.

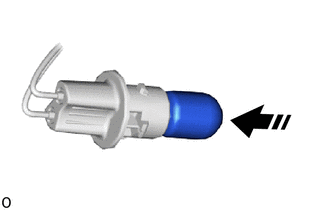

B555564C01
0,0 0,0 false
V113147

Install in this Direction


Install the back-up light bulb to the bulb socket.


b.

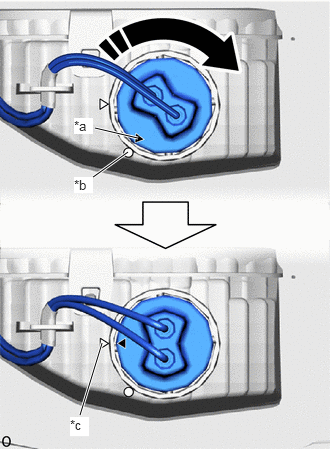

B555562C01
0.99,1.333 1.438,1.438 true 1.063,3.573 0.833,4.323 true 0.969,1.844 1.333,1.583 true 0.771,1.229 0.969,1.396 0.198,0.167 10 true *a 0.729,4.344 0.927,4.542 0.198,0.198 10 true *c 0.771,1.844 0.969,2.01 0.198,0.167 10 true *b
*a Matchmark
*b Unlock Position Mark
*c Lock Position Mark
V113147

Turn in this Direction


for Type A:

i.

Align the bulb socket with the unlock position mark, and then turn the bulb socket clockwise until the matchmark is aligned with the lock position mark and connect the bulb socket.



c.

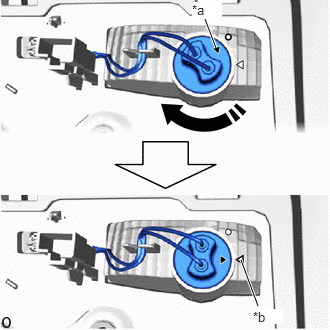

B573487C01
2.135,0.198 2.25,0.5 true 2.688,3.188 2.51,2.708 true 2,0.021 2.313,0.177 0.313,0.156 10 true *a 2.635,3.219 2.948,3.375 0.313,0.156 10 true *b
*a Matchmark
*b Lock Position Mark
V113147

Turn in this Direction


for Type B:

i.

Align the bulb socket with the unlock position mark, and then turn the bulb socket clockwise until the matchmark is aligned with the lock position mark and connect the bulb socket.



Hide 81588 5.INSTALL REAR LIGHT PROTECTOR LH (for Type A)

a.

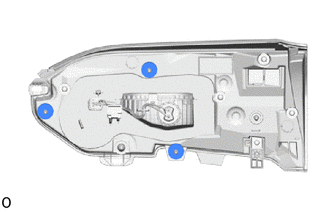

B555559

Install 3 new rear light protectors LH.
