RM36D0EC _59 Vehicle Exterior _083096 LIGHTING (EXT) _0402633 REAR LIGHT ASSEMBLY A

LIGHTING (EXT) REAR LIGHT ASSEMBLY REMOVAL

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH and LH sides.

·

The procedure described below is for the LH side.

PROCEDURE

Hide Display 76801 1.REMOVE BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>BACK DOOR OUTSIDE GARNISH (for Upper Side)>REMOVAL202004,999999,_59,_083111,_0400768,RM100000001MENJ,

Hide Display 2.REMOVE REAR LIGHT ASSEMBLY LH

for Type A:

NOTICE:: If the rear light assembly LH has been removed, replace the rear light protector LH and rear light gasket LH with a new one.

0,0 0,0 false

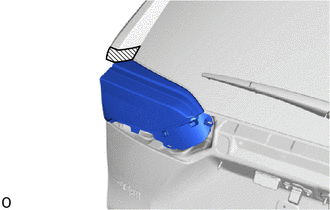

Protective Tape

Apply protective tape as shown in the illustration.

ii.

0,0 0,0 false

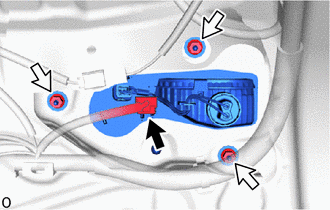

	Connector
	Nut

Disconnect the connector.

iii.

Remove the 3 nuts.

iv.

0,0 0,0 false

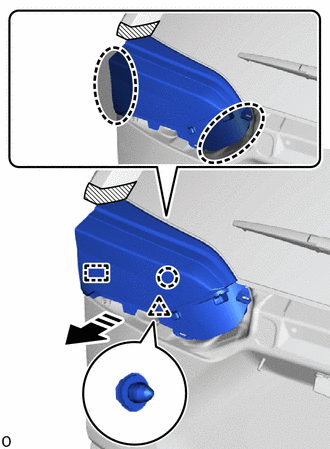

	Place Hands Here
	Remove in this Direction

Place your hands at the position shown in the illustration, pull in the removal direction, detach the claw, clip and pin and remove the rear light assembly LH.

for Type B:

0,0 0,0 false

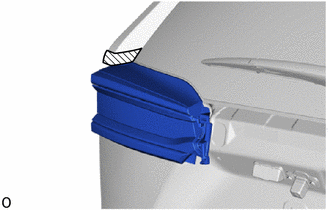

Protective Tape

Apply protective tape as shown in the illustration.

ii.

0,0 0,0 false

	Connector
	Nut

Disconnect the connector.

iii.

Remove the 3 nuts.

iv.

0,0 0,0 false

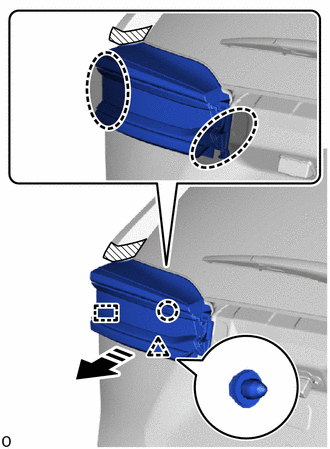

	Place Hands Here
	Remove in this Direction

Place your hands at the position shown in the illustration, pull in the removal direction, detach the claw, clip and pin and remove the rear light assembly LH.
