LIGHTING (EXT)  REAR LIGHT ASSEMBLY  COMPONENTS

ILLUSTRATION

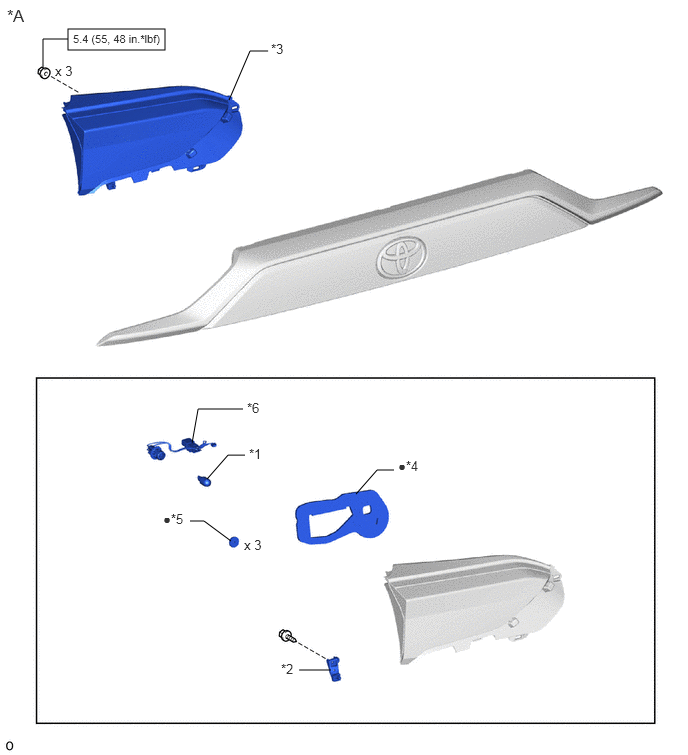

0.708,0.302 1.719,0.521 1.01,0.219 2.385,1.042 2.604,0.531 2.604,0.531 2.792,0.531 false 2.406,5.635 2.125,5.427 2.125,5.427 1.979,5.427 false 2,4.615 2.063,4.26 2.063,4.26 2.531,4.26 false 0.708,0.406 0.448,0.406 0.448,0.406 0.448,0.708 false 3.115,6.979 3.448,6.979 false 3.708,5.146 3.927,4.896 3.927,4.896 4.104,4.896 false 2.156,4.99 2.375,4.74 2.375,4.74 2.552,4.74 false 2.927,6.885 3.24,7.042 0.313,0.156 10 false *2 2.823,0.427 3.135,0.583 0.313,0.156 10 false *3 1.698,5.323 2.135,5.563 0.438,0.24 10 false ●*5 2.573,4.167 2.99,4.365 0.417,0.198 10 false *6 0.573,0.656 1.031,0.854 0.458,0.198 10 false x 3 0.76,0.333 1.729,0.51 0.969,0.177 8 false 5.4 (55, 48 in.*lbf) 4.146,4.771 4.583,5.01 0.438,0.24 10 false ●*4 2.542,5.594 3,5.792 0.458,0.198 10 false x 3 2.594,4.646 2.906,4.802 0.313,0.156 10 false *1 0.073,0.063 0.448,0.313 0.375,0.25 12 false *A

*A	for Type A	-	-
*1	BACK-UP LIGHT BULB	*2	NO. 2 BACK DOOR GARNISH RETAINER
*3	REAR LIGHT ASSEMBLY LH _59,_083096,_0402633,LIGHTING (EXT)/REAR LIGHT ASSEMBLY REAR LIGHT ASSEMBLY LH _59,_083096,_0402633,LIGHTING (EXT)/REAR LIGHT ASSEMBLY	*4	REAR LIGHT GASKET LH
*5	REAR LIGHT PROTECTOR LH	*6	REAR LIGHT SOCKET AND WIRE LH
	N*m (kgf*cm, ft.*lbf): Specified torque	●	Non-reusable part

ILLUSTRATION

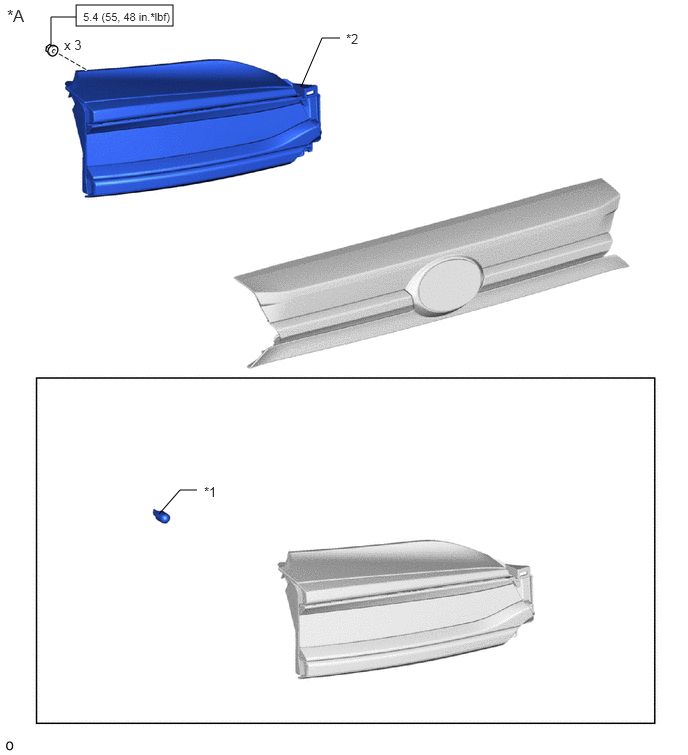

0.792,0.052 1.802,0.271 1.01,0.219 3.135,0.906 3.354,0.396 3.354,0.396 3.542,0.396 false 0.792,0.177 0.531,0.177 0.531,0.177 0.531,0.479 false 1.656,5.354 1.875,5.104 1.875,5.104 2.052,5.104 false 3.604,0.323 3.917,0.479 0.313,0.156 10 false *2 0.667,0.385 1.125,0.583 0.458,0.198 10 false x 3 0.865,0.104 1.833,0.281 0.969,0.177 8 false 5.4 (55, 48 in.*lbf) 2.125,5.042 2.438,5.198 0.313,0.156 10 false *1 0.073,0.063 0.448,0.313 0.375,0.25 12 false *A

*A	for Type B	-	-
*1	BACK-UP LIGHT BULB	*2	REAR LIGHT ASSEMBLY LH _59,_083096,_0402633,LIGHTING (EXT)/REAR LIGHT ASSEMBLY REAR LIGHT ASSEMBLY LH _59,_083096,_0402633,LIGHTING (EXT)/REAR LIGHT ASSEMBLY
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-
