RM36D0EC _59 Vehicle Exterior _083096 LIGHTING (EXT) _0403540 REAR FOG LIGHT ASSEMBLY G

LIGHTING (EXT)  REAR FOG LIGHT ASSEMBLY  INSPECTION


PROCEDURE

Hide 1.INSPECT REAR FOG LIGHT ASSEMBLY LH (for Type A)

a.
B555598C01
0.917,1.125 1.531,1.26 true 1.896,1.271 2.542,1.115 true 0.781,0.99 0.979,1.177 0.198,0.188 10 false B 2.594,0.979 2.75,1.177 0.156,0.198 10 false E 0.219,0.229 0.531,0.385 0.313,0.156 10 false *a
*a Component without harness connected
(Rear Fog Light Assembly LH)


Apply auxiliary battery voltage to the connector and check the light illumination conditions.

OK:
Auxiliary Battery Connection Specified Condition

If the result is not as specified, replace the rear fog light assembly LH.

Auxiliary battery positive (+) → 2 (B)
Auxiliary battery negative (-) → 1 (E) 		Illuminates



Hide 2.INSPECT REAR FOG LIGHT ASSEMBLY RH (for Type A)

a.
B555598C01
0.917,1.125 1.531,1.26 true 1.896,1.271 2.542,1.115 true 0.781,0.99 0.979,1.177 0.198,0.188 10 false B 2.594,0.979 2.75,1.177 0.156,0.198 10 false E 0.219,0.229 0.531,0.385 0.313,0.156 10 false *a
*a Component without harness connected
(Rear Fog Light Assembly RH)


Apply auxiliary battery voltage to the connector and check the light illumination conditions.

OK:
Auxiliary Battery Connection Specified Condition

If the result is not as specified, replace the rear fog light assembly RH.

Auxiliary battery positive (+) → 2 (B)
Auxiliary battery negative (-) → 1 (E) 		Illuminates

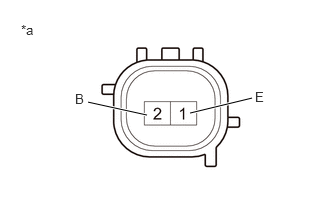

Hide 81480A 3.INSPECT REAR FOG LIGHT ASSEMBLY (for Type B)

a.
B573492C01
0.917,1.063 1.531,1.198 true 1.979,1.177 2.625,1.021 true 0.781,0.948 0.979,1.135 0.198,0.188 10 false B 2.656,0.927 2.813,1.125 0.156,0.198 10 false E 0.219,0.229 0.531,0.385 0.313,0.156 10 false *a
*a Component without harness connected
(Rear Fog Light Assembly)


Apply auxiliary battery voltage to the connector and check the light illumination conditions.

OK:
Auxiliary Battery Connection Specified Condition

If the result is not as specified, replace the rear fog light assembly.

Auxiliary battery positive (+) → 2 (B)
Auxiliary battery negative (-) → 1 (E) 		Illuminates
