LIGHTING (EXT) REAR FOG LIGHT ASSEMBLY REMOVAL

CAUTION / NOTICE / HINT

PROCEDURE

Hide Display 1.REMOVE REAR BUMPER ASSEMBLY

for Type A: Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>REAR BUMPER (for Type A)>REMOVAL201910,202304,_59,_083111,_0400752,RM100000001J9LE,202304,202405,_59,_083111,_0400752,RM1000000029RQX,202405,202409,_59,_083111,_0400752,RM100000002LVGQ,202409,999999,_59,_083111,_0400752,RM100000002NG20,

for Type B: Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>REAR BUMPER (for Type B)>REMOVAL202004,202104,_59,_083111,_0417478,RM100000001MEO0,202104,202304,_59,_083111,_0417478,RM100000001WEZQ,202304,202405,_59,_083111,_0417478,RM1000000029SDM,202405,202409,_59,_083111,_0417478,RM100000002LVGS,202409,999999,_59,_083111,_0417478,RM100000002NG22,

Hide Display 81490C 2.REMOVE REAR FOG LIGHT ASSEMBLY LH (for Type A)

HINT:: Use the same procedure for the RH and LH sides.

a.

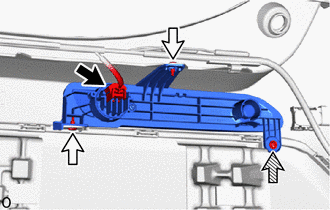

B555575C01

0,0 0,0 false

	Connector
	Clip
	Screw

Disconnect the connector.

b.

Remove the screw.

c.

Remove the 2 clips and rear fog light assembly LH.

Hide Display 81480A 3.REMOVE REAR FOG LIGHT ASSEMBLY (for Type B)

a.

B573022C01

0,0 0,0 false

	Connector
	Screw

Disconnect the connector.

b.

Dettach the wire harness clamp.

c.

Remove the screw.

d.

Detach the guide and rear fog light assembly.
