RM36D0EC _59 Vehicle Exterior _083096 LIGHTING (EXT) _0402623 HEADLIGHT ASSEMBLY(for Triple Beam Headlight) A

LIGHTING (EXT)  HEADLIGHT ASSEMBLY(for Triple Beam Headlight)  REPAIR


CAUTION / NOTICE / HINT

HINT:
·

If the installation area of the headlight assembly is damaged, use the supply retainer for low-cost repair.

·

Make sure that the headlight assembly is not damaged.

·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.



PROCEDURE

Hide 81194 1.INSTALL UPPER HEADLIGHT PROTECTOR RETAINER LH (for Type A)

a.

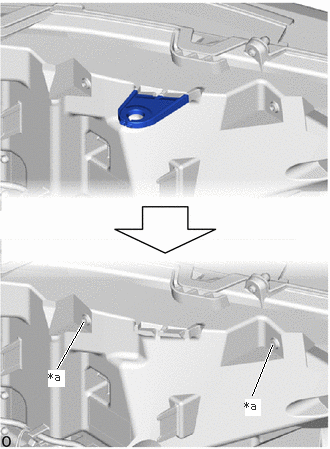

E407909C01
0.594,3.833 0.865,3.354 true 2.625,4.115 2.833,3.594 true 0.5,3.854 0.677,4.031 0.177,0.177 10 true *a 2.542,4.156 2.719,4.333 0.177,0.177 10 true *a
*a Boss


Cut off the blue-colored part in the illustration and sand smooth with sandpaper.

NOTICE:

After cutting off the part, place the upper headlight protector retainer LH against the bosses and gradually file away the old bracket if it interferes with the installation of the supply retainer.



b.

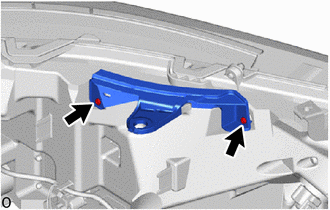

E407910

Install the upper headlight protector retainer LH with the 2 screws.


Hide 81194B 2.INSTALL UPPER NO. 2 HEADLIGHT PROTECTOR RETAINER LH (for Type A)

a.

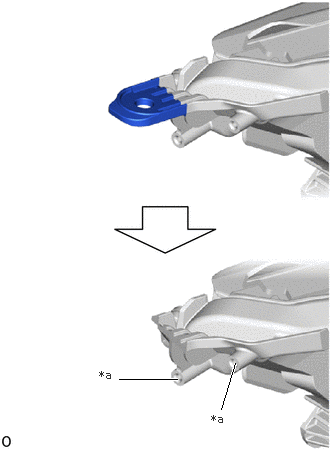

E407905C01
1.24,3.948 1.844,3.948 true 2.302,4.26 2.448,3.781 true 1.031,3.833 1.208,4.01 0.177,0.177 10 false *a 2.198,4.292 2.375,4.469 0.177,0.177 10 false *a
*a Boss


Cut off the blue-colored part in the illustration and sand smooth with sandpaper.

NOTICE:

After cutting off the part, place the upper No. 2 headlight protector retainer LH against the bosses and gradually file away the old bracket if it interferes with the installation of the supply retainer.

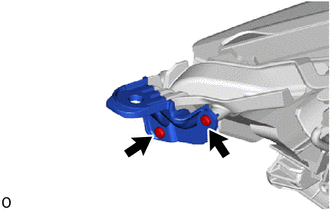

b.
E407906

Install the upper No. 2 headlight protector retainer LH with the 2 screws.


Hide 81196A 3.INSTALL LOWER HEADLIGHT PROTECTOR RETAINER LH (for Type A)

a.

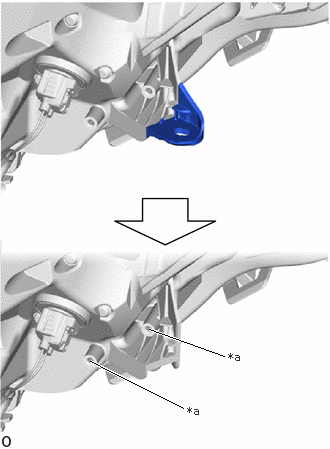

E407907C01
0.938,3.76 1.906,4.25 true 1.552,3.427 2.333,3.708 true 1.948,4.208 2.156,4.375 0.208,0.167 10 false *a 2.375,3.646 2.583,3.813 0.208,0.167 10 false *a
*a Boss


Cut off the blue-colored part in the illustration and sand smooth with sandpaper.

NOTICE:

After cutting off the part, place the lower headlight protector retainer LH against the bosses and gradually file away the old bracket if it interferes with the installation of the supply retainer.

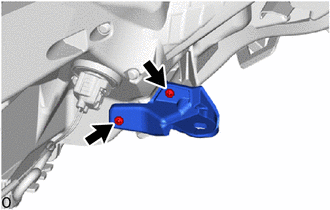

b.
E407908

Install the lower headlight protector retainer LH with the 2 screws.


Hide 81196D 4.INSTALL LOWER NO. 2 HEADLIGHT PROTECTOR RETAINER LH (for Type A)

a.

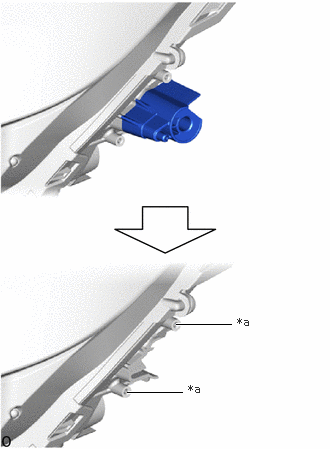

E407903C01
2.406,3.375 1.833,3.375 true 1.896,4.083 1.323,4.083 true 2.469,3.281 2.781,3.438 0.313,0.156 10 false *a 1.958,3.979 2.271,4.135 0.313,0.156 10 false *a
*a Boss


Cut off the blue-colored part in the illustration and sand smooth with sandpaper.

NOTICE:

After cutting off the part, place the lower No. 2 headlight protector retainer LH against the bosses and gradually file away the old bracket if it interferes with the installation of the supply retainer.

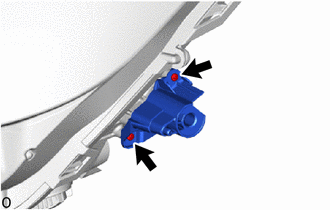

b.
E407904

Install the upper No. 2 headlight protector retainer LH with the 2 screws.
