RM36D0EC _58 Vehicle Interior _083103 SEAT BELT _0419079 REAR CENTER SEAT OUTER BELT ASSEMBLY(for SFTM Made) A

SEAT BELT REAR CENTER SEAT OUTER BELT ASSEMBLY(for SFTM Made) REMOVAL

CAUTION / NOTICE / HINT

CAUTION:: ·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.

Hide Display 71940A 1.REMOVE REAR SEAT HEADREST ASSEMBLY

Remove the rear seat headrest assembly.

Hide Display 71960B 2.REMOVE REAR CENTER SEAT HEADREST ASSEMBLY

Remove the rear center seat headrest assembly.

Hide Display 3.REMOVE BENCH TYPE REAR SEAT CUSHION ASSEMBLY

Hide Display 72693 4.REMOVE REAR SEAT CUSHION LOCK HOOK

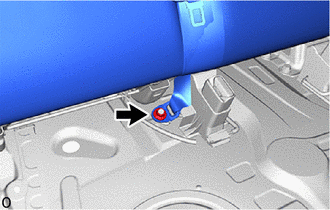

Hide Display 73350C 5.REMOVE REAR CENTER SEAT OUTER BELT ASSEMBLY (FLOOR ANCHOR)

Remove the nut and the floor anchor of the rear center seat outer belt assembly.

Hide Display 6.REMOVE REAR SEATBACK ASSEMBLY RH

Hide Display 73178A 7.REMOVE SEAT BELT ANCHOR COVER CAP

Hide Display 73373 8.REMOVE REAR SEAT SHOULDER BELT COVER

Hide Display 72668E 9.REMOVE REAR LOWER SEATBACK LOCK BEZEL RH

Hide Display 72667 10.REMOVE REAR UPPER SEATBACK LOCK BEZEL RH

Hide Display 72868B 11.REMOVE CENTER ARMREST HINGE COVER

Hide Display 72830 12.REMOVE REAR CENTER SEAT ARMREST ASSEMBLY

Hide Display 13.REMOVE SEPARATE TYPE REAR SEATBACK COVER WITH PAD RH

Hide Display 73350C 14.REMOVE REAR CENTER SEAT OUTER BELT ASSEMBLY

Remove the nut.

Detach the guide and remove the rear center seat outer belt assembly.
