RM36D0EC _58 Vehicle Interior _083103 SEAT BELT _0401773 REAR SEAT INNER BELT ASSEMBLY A

SEAT BELT REAR SEAT INNER BELT ASSEMBLY REMOVAL

PROCEDURE

Hide Display 71940A 1.REMOVE REAR SEAT HEADREST ASSEMBLY

a.

Remove the 2 rear seat headrest assemblies.

Hide Display 71960B 2.REMOVE REAR CENTER SEAT HEADREST ASSEMBLY

a.

Remove the rear center seat headrest assembly.

Hide Display 3.REMOVE BENCH TYPE REAR SEAT CUSHION ASSEMBLY

a.

for SFTM Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>REMOVAL202004,999999,_58,_083102,_0419059,RM100000001MO2R_01_0022,

b.

for GTMC Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>REMOVAL202004,999999,_58,_083102,_0419060,RM100000001MO2W_01_0022,

Hide Display 72693 4.REMOVE REAR SEAT CUSHION LOCK HOOK

a.

for SFTM Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>REMOVAL202004,999999,_58,_083102,_0419059,RM100000001MO2R_01_0001,

b.

for GTMC Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>REMOVAL202004,999999,_58,_083102,_0419060,RM100000001MO2W_01_0001,

Hide Display 5.REMOVE REAR SEATBACK ASSEMBLY LH

a.

for SFTM Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>REMOVAL202004,999999,_58,_083102,_0419059,RM100000001MO2R_01_0012,

b.

for GTMC Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>REMOVAL202004,999999,_58,_083102,_0419060,RM100000001MO2W_01_0012,

Hide Display 73350C 6.REMOVE REAR CENTER SEAT OUTER BELT ASSEMBLY (FLOOR ANCHOR)

a.

for SFTM Made:

Click hereVehicle Interior>SEAT BELT>REAR CENTER SEAT OUTER BELT ASSEMBLY (for SFTM Made)>REMOVAL202004,999999,_58,_083103,_0419079,RM100000001MO7O_01_0085,

b.

for GTMC Made:

Click hereVehicle Interior>SEAT BELT>REAR CENTER SEAT OUTER BELT ASSEMBLY (for GTMC Made)>REMOVAL202004,999999,_58,_083103,_0419080,RM100000001MO7S_01_0085,

Hide Display 7.REMOVE REAR SEATBACK ASSEMBLY RH

a.

for SFTM Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>REMOVAL202004,999999,_58,_083102,_0419059,RM100000001MO2R_01_0011,

b.

for GTMC Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>REMOVAL202004,999999,_58,_083102,_0419060,RM100000001MO2W_01_0011,

Hide Display 73480 8.REMOVE REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH

a.

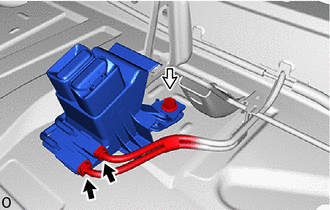

B554727C01

0,0 0,0 false

	Connector
	Bolt

Disconnect the 2 connectors.

b.

Loosen the bolt and remove the rear seat inner with center belt assembly LH.

Hide Display 73380D 9.REMOVE REAR SEAT INNER BELT ASSEMBLY

a.

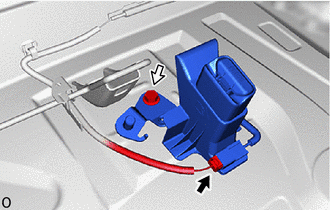

B553784C01

0,0 0,0 false

	Connector
	Bolt

Disconnect the connector.

b.

Remove the bolt and rear seat inner belt assembly.
