RM36D0EC _58 Vehicle Interior _083103 SEAT BELT _0419075 FRONT SEAT INNER BELT ASSEMBLY(for GTMC Made Manual Seat) G

SEAT BELT  FRONT SEAT INNER BELT ASSEMBLY(for GTMC Made Manual Seat)  INSPECTION


PROCEDURE

Hide 73240 1.INSPECT FRONT SEAT INNER BELT ASSEMBLY LH (for Driver Side)

a.

Check the resistance.

i.
B276694C61
1.729,1.771 1.729,1.219 true 2.031,1.76 1.917,1.219 true 0.167,0.167 0.479,0.365 0.313,0.198 10 false *a 1.698,1.781 1.854,1.979 0.156,0.198 10 false + 2.021,1.792 2.219,2.01 0.198,0.219 10 false E
*a Component without harness connected
(Front Seat Inner Belt Assembly LH)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

If the result is not as specified, replace the front seat inner belt assembly LH.

3 (+) - 2 (E) Seat belt unfastened Below 1 Ω
Seat belt fastened 10 kΩ or higher




Hide 73230 2.INSPECT FRONT SEAT INNER BELT ASSEMBLY RH (for Front Passenger Side)

a.

Check the resistance.

i.

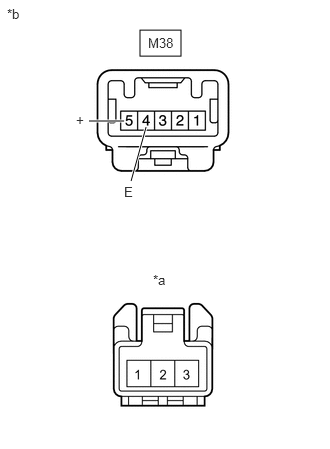

B337570C43
1.458,0.313 1.885,0.583 0.427,0.271 1.365,1.885 1.521,1.323 true 0.927,1.26 1.292,1.26 true 0.073,0.063 0.385,0.26 0.313,0.198 10 false *b 1.542,0.365 1.969,0.615 0.427,0.25 10 false M38 1.594,2.833 1.906,3.031 0.313,0.198 10 false *a 0.792,1.167 0.948,1.365 0.156,0.198 10 false + 1.292,1.917 1.531,2.167 0.24,0.25 10 false E
*a Connector A
*b Component without harness connected
(Front Seat Inner Belt Assembly RH)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

If the result is not as specified, replace the front seat inner belt assembly RH.

M38-3 - M38-2 Seat belt unfastened Below 1 Ω
Seat belt fastened 10 kΩ or higher
M38-5 (+) - A-1 Always Below 1 Ω
M38-4 (E) - A-3 Always Below 1 Ω
