SEAT  CLIMATE CONTROL SEAT SWITCH  INSPECTION

0.885,2.771 1.271,2.771 true 2.042,2.76 2.427,2.76 true 2.469,2.688 3.083,2.885 0.615,0.198 10 false ILL- 0.604,2.688 1.219,2.885 0.615,0.198 10 false ILL+ 0.74,1.781 1.052,1.938 0.313,0.156 10 false *a

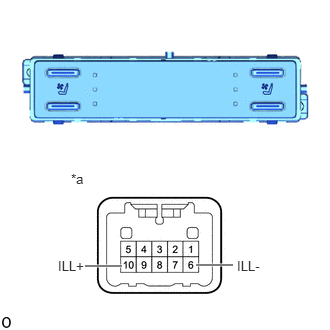

*a	Component without harness connected (Refreshing Seat Switch)

Apply auxiliary battery voltage to the switch connector and check that the refreshing seat switch illuminates.

OK:

Measurement Condition	Specified Condition
If the result is not as specified, replace the refreshing seat switch.
Auxiliary battery positive (+) → 10 (ILL+) Auxiliary battery negative (-) → 6 (ILL-)	Illumination illuminates
