SEAT  REAR SEAT ASSEMBLY(for GTMC Made)  DISASSEMBLY

Detach the hook.

i.

for Gasoline Model:

ii.

for HV Model:

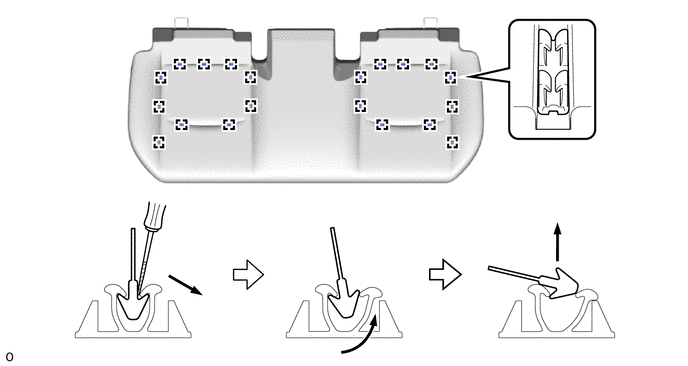

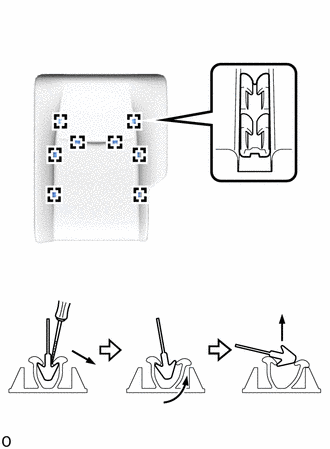

Using a thin-bladed screwdriver, detach the hook and remove the bench type rear seat cushion cover from the rear seat cushion pad as shown in the illustration.

0,0 0,0 false

Protective Tape

-

-

NOTICE:

Be careful not to dirty or damage the bench type rear seat cushion cover.

HINT:

Tape the thin-bladed screwdriver tip before use.

0,0 0,0 false

Remove in this Direction

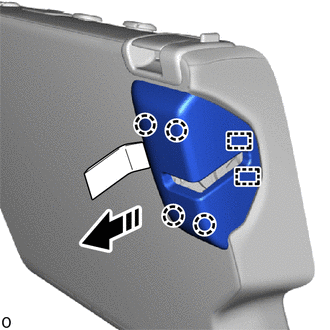

Using a moulding remover D, detach the claw.

Detach the claw and remove the rear upper seatback lock bezel LH as shown in the illustration.

Detach the hook.

Detach the hook.

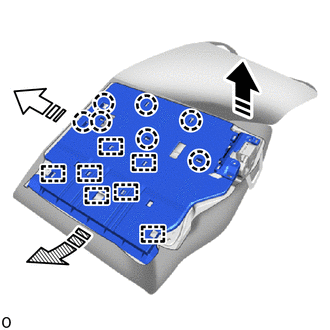

Pull out the 2 fasteners from the hole of rear seatback board sub-assembly LH.

Remove the 2 clips.

0.354,1.906 0.802,1.938 true 1.385,2.417 1.906,2.823 true 1.281,1.99 0.677,1.26 0.677,1.26 1.615,1.688 true 0.479,1.094 0.667,1.292 0.188,0.198 10 false *a 0.156,1.813 0.333,1.99 0.177,0.177 10 false *b 1.938,2.802 2.115,2.979 0.177,0.177 10 false *b

*a	Guide
*b	Hook
	Remove in this Direction (1)
	Remove in this Direction (2)
	Remove in this Direction (3)

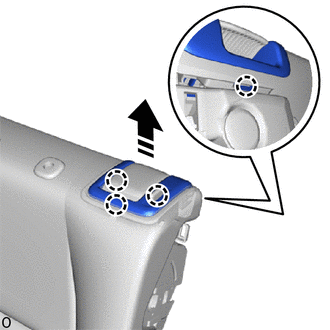

Pull in the removal direction (1) shown in the illustration to detach the claw.

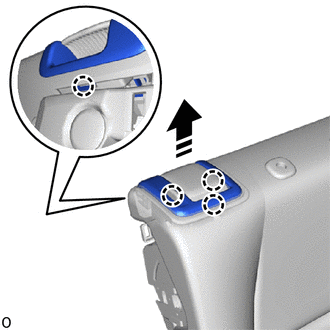

Detach the claw and remove the 2 rear seat headrest supports.

0,0 0,0 false

Protective Tape

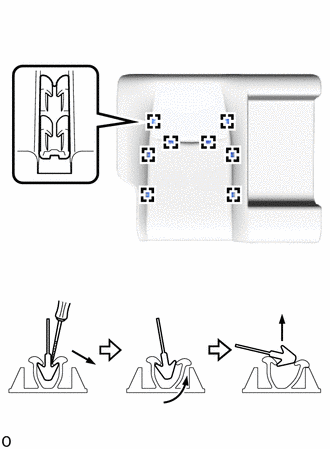

Using a thin-bladed screwdriver, detach the hook and remove the separate type rear seatback cover LH from the separate type rear seatback pad LH as shown in the illustration.

NOTICE:

Be careful not to dirty or damage the separate type rear seatback cover LH.

HINT:

Tape the thin-bladed screwdriver tip before use.

Remove the 2 screws.

Remove the 3 bolts and rear seatback lock assembly LH.

HINT:

Remove the rear seat lock control lever sub-assembly LH together with the rear seatback lock assembly LH.

Detach the hook and remove the rear seat lock control lever sub-assembly LH from the rear seatback lock assembly LH.

0,0 0,0 false

Remove in this Direction

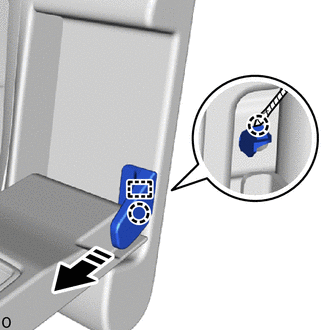

Using a moulding remover D, detach the claw.

0,0 0,0 false

Remove in this Direction

Detach the guide and remove the seat belt anchor cover cap as shown in the illustration.

Pass the rear center seat outer belt assembly from the slit and remove the rear seat shoulder belt cover.

0,0 0,0 false

Remove in this Direction

Using a moulding remover D, detach the claw.

Detach the claw and remove the rear upper seatback lock bezel RH as shown in the illustration.

Detach the hook.

Detach the hook.

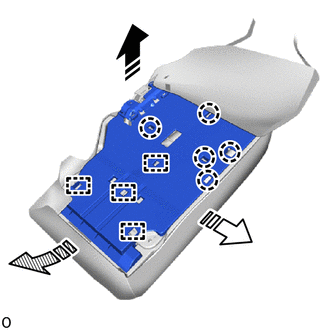

Pull out the 2 fasteners from the hole of rear seatback board sub-assembly RH.

Remove the 2 clips.

0.26,2.25 0.531,1.823 true 1.583,2.448 1.063,2.979 1.063,2.979 1.021,2.052 true 1.146,1.531 0.385,1.458 0.385,1.458 0.906,1.802 true 1.51,1.698 2.479,2.365 2.479,2.365 1.281,2.01 true 0.188,1.333 0.365,1.531 0.177,0.198 10 false *a 0.115,2.271 0.323,2.458 0.208,0.188 10 false *b 0.948,3.021 1.156,3.208 0.208,0.188 10 false *b 2.51,2.302 2.688,2.5 0.177,0.198 10 false *a

*a	Guide
*b	Hook
	Remove in this Direction (1)
	Remove in this Direction (2)
	Remove in this Direction (3)

Pull in the removal direction (1) shown in the illustration to detach the claw.

0,0 0,0 false

	Remove in this Direction
	Protective Tape

Using a thin-bladed screwdriver, detach the claw on the rear side.

HINT:

Tape the thin-bladed screwdriver tip before use.

2.823,1.719 2.823,1.354 false 2.75,1.74 3.063,1.896 0.313,0.156 10 false *a

*a

Washer

Remove the bolt and washer.

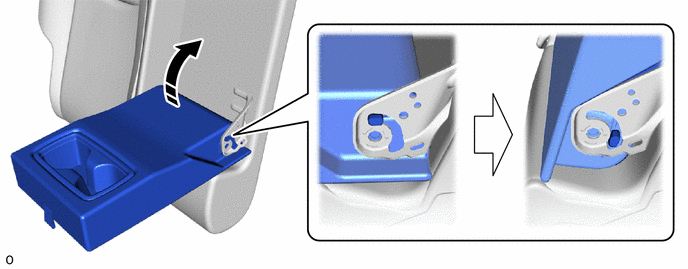

Return the rear center seat armrest assembly to rotate the outside location pin to the position as shown in the illustration.

3.031,1.771 3.906,1.26 true 6.563,1.927 6.396,1.479 true 2.833,1.729 3.01,1.917 0.177,0.188 10 false *a 6.521,1.948 6.708,2.135 0.188,0.188 10 true *a

*a	Outside Location Pin	-	-
	Rotate	-	-

2.323,1.938 2.885,2.052 true 0.354,0.74 0.823,0.896 true 2.917,1.99 3.229,2.146 0.313,0.156 10 false *a 0.167,0.625 0.344,0.823 0.177,0.198 10 true *b

*a	Outside Location Pin
*b	Inside Location Pin
	Remove in this Direction (1)
	Remove in this Direction (2)

Detach the outside location pin in the removal direction (1) shown in the illustration.

Remove the bush.

0,0 0,0 false

Remove in this Direction

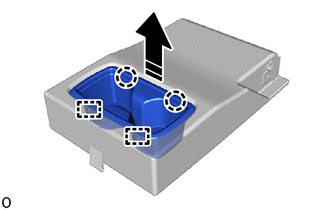

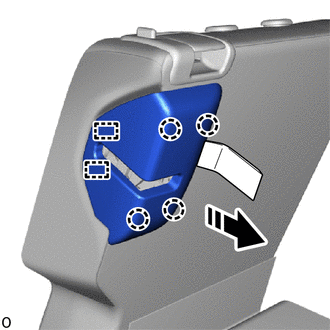

Detach the claw and guide and remove the rear center seat armrest cup holder sub-assembly as shown in the illustration.

Detach the claw and remove the 4 rear seat headrest supports.

Detach the hook.

Pass the rear center seat outer belt assembly through the hole of separate type rear seatback cover with pad.

0,0 0,0 false

Protective Tape

Using a thin-bladed screwdriver, detach the hook and remove the separate type rear seatback cover RH from the separate type rear seatback pad RH as shown in the illustration.

NOTICE:

Be careful not to dirty or damage the separate type rear seatback cover.

HINT:

Tape the thin-bladed screwdriver tip before use.

Remove the 2 screws.

Remove the 3 bolts and rear seatback lock assembly RH.

HINT:

Remove the rear seat lock control lever sub-assembly RH together with the rear seatback lock assembly RH.

Detach the hook and remove the rear seat lock control lever sub-assembly RH from the rear seatback lock assembly RH.
