RM36D0EC _59 Vehicle Exterior _083111 EXTERIOR PANELS / TRIM _0400764 REAR DOOR OUTSIDE MOULDING A

EXTERIOR PANELS / TRIM  REAR DOOR OUTSIDE MOULDING  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.



PROCEDURE

Hide 67858B 1.INSTALL REAR DOOR PANEL PROTECTOR LH

a.

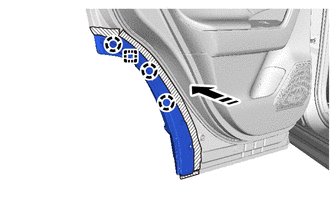

B526340C02
0,0 0,0 false
V113147

Install in this Direction


Attach the claw and guide to install the rear door panel protector LH as shown in the illustration.


b.

Remove the protective tape.


c.

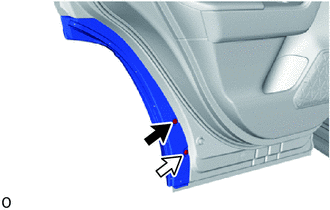

B526226C02
0,0 0,0 false
V100135

Screw
V100136

Clip


Install the screw and clip.


Hide 67888J 2.INSTALL NO. 2 ACCESS PANEL WEATHERSTRIP LH

a.
B523514

Attach the clip and install the No. 2 access panel weatherstrip LH.


Hide 75062 3.INSTALL OUTSIDE MOULDING SET LH

a.

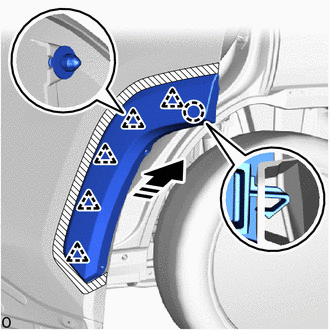

B523518C01
0,0 0,0 false
V113147

Install in this Direction


Attach the clip and claw to install the outside moulding set LH as shown in the illustration.


b.

Remove the protective tape.


c.

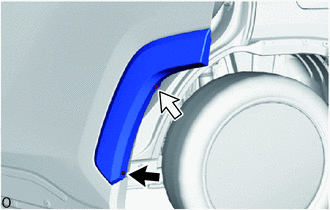

B523515C02
0,0 0,0 false
V100135

Screw
V100136

Clip


Install the screw and clip.


Hide 75078 4.INSTALL REAR DOOR LOWER OUTSIDE MOULDING SUB-ASSEMBLY LH (for Type A)

a.

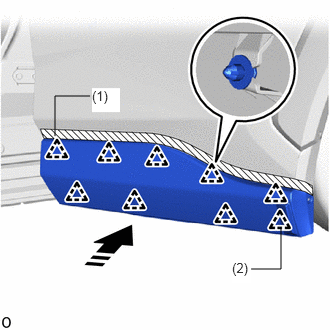

B523510C01
0.573,1.417 0.573,1 0.573,1 0.938,1 false 2.594,2.802 2.927,2.802 2.927,2.802 2.927,2.385 false 0.958,0.917 1.25,1.167 0.292,0.25 10 true (1) 2.417,2.708 2.615,2.948 0.198,0.24 10 true (2)
V113147

Install in this Direction


Attach the clip and install the rear door lower outside moulding sub-assembly LH in the order shown in the illustration.


b.

Remove the protective tape.


c.
B523506

Install the nut.


d.
B523505

Install the hole plug.


e.
B523507

Install the clip.


Hide 75078 5.INSTALL REAR DOOR LOWER OUTSIDE MOULDING SUB-ASSEMBLY LH (for Type B)

a.

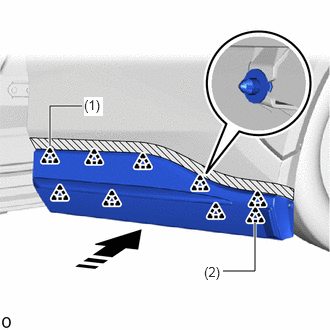

B571335C02
0.521,1.521 0.521,1.104 0.521,1.104 0.854,1.104 true 2.323,2.823 2.656,2.823 2.656,2.823 2.656,2.323 true 0.875,1.01 1.073,1.208 0.198,0.198 10 true (1) 2.125,2.75 2.323,2.948 0.198,0.198 10 false (2)
V113147

Install in this Direction


Attach the clip and install the rear door lower outside moulding sub-assembly LH in the order shown in the illustration.


b.

Remove the protective tape.


c.
B523506

Install the nut.


d.
B523505

Install the hole plug.


e.
B571326

Install the clip.
