RM36D0EC _59 Vehicle Exterior _083111 EXTERIOR PANELS / TRIM _0400763 FRONT DOOR OUTSIDE MOULDING A

EXTERIOR PANELS / TRIM  FRONT DOOR OUTSIDE MOULDING  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.



PROCEDURE

Hide 75074 1.INSTALL FRONT DOOR LOWER OUTSIDE MOULDING SUB-ASSEMBLY LH (for Type A)

a.
B523500C01
0,0 0,0 false
V113147

Install in this Direction

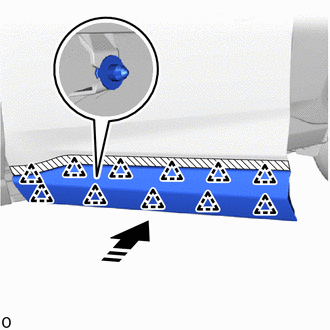

Attach the clip to install the front door lower outside moulding sub-assembly LH as shown in the illustration.


b.

Remove the protective tape.


c.
B523497

Install the nut.


d.
B523496

Install the hole plug.


Hide 75074 2.INSTALL FRONT DOOR LOWER OUTSIDE MOULDING SUB-ASSEMBLY LH (for Type B)

a.
B599756C01
0,0 0,0 false
V113147

Install in this Direction


Attach the clip to install the front door lower outside moulding sub-assembly LH as shown in the illustration.


b.

Remove the protective tape.


c.
B523497

Install the nut.


d.
B523496

Install the hole plug.
