RM36D0EC _59 Vehicle Exterior _083111 EXTERIOR PANELS / TRIM _0400763 FRONT DOOR OUTSIDE MOULDING A

EXTERIOR PANELS / TRIM  FRONT DOOR OUTSIDE MOULDING  REMOVAL


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.



PROCEDURE

Hide 75074 2.REMOVE FRONT DOOR LOWER OUTSIDE MOULDING SUB-ASSEMBLY LH (for Type A)

a.

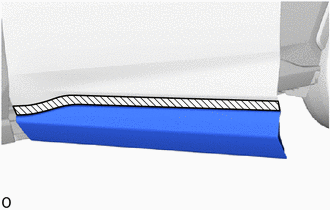

B523498C01
0,0 0,0 false
V100155

Protective tape


Apply protective tape around the front door lower outside moulding sub-assembly LH.


b.

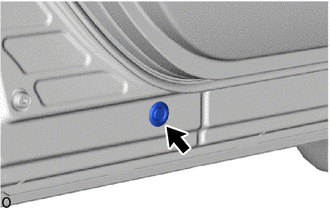

B523496

Remove the hole plug.


c.
B523497

Remove the nut.


d.

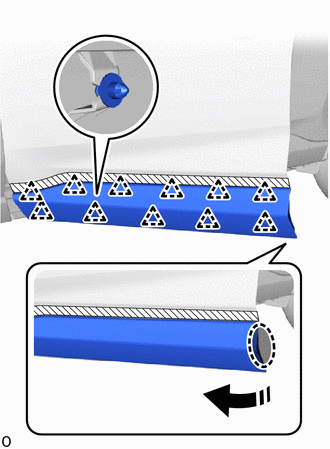

B552550C01
0,0 0,0 false
V113146

Place Hand Here
V113147

Remove in this Direction


Detach the clip and remove the front door lower outside moulding sub-assembly LH as shown in the illustration.


Hide 75074 3.REMOVE FRONT DOOR LOWER OUTSIDE MOULDING SUB-ASSEMBLY LH (for Type B)

a.

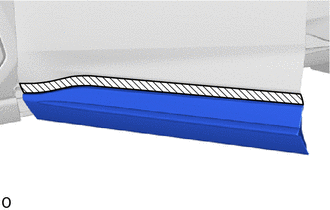

B599754C01
0,0 0,0 false
V100155

Protective tape


Apply protective tape around the front door lower outside moulding sub-assembly LH.


b.
B523496

Remove the hole plug.


c.

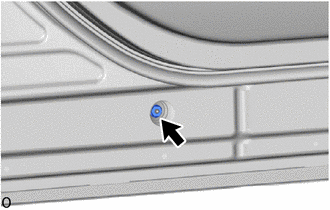

B523497

Remove the nut.


d.

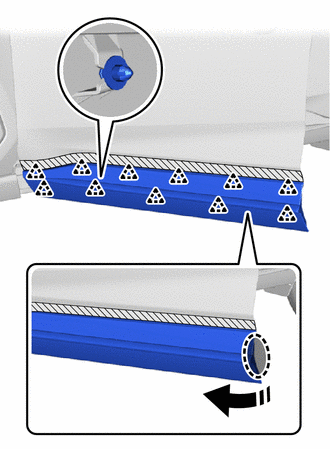

B599755C01
0,0 0,0 false
V113146

Place Hand Here
V113147

Remove in this Direction


Detach the clip and remove the front door lower outside moulding sub-assembly LH as shown in the illustration.
