RM36D0EC _58 Vehicle Interior _083097 METER / GAUGE / DISPLAY _0418056 HEADUP DISPLAY A

METER / GAUGE / DISPLAY  HEADUP DISPLAY  DISASSEMBLY


PROCEDURE

Hide 83107A 1.REMOVE NO. 1 METER BRACKET SUB-ASSEMBLY

a.

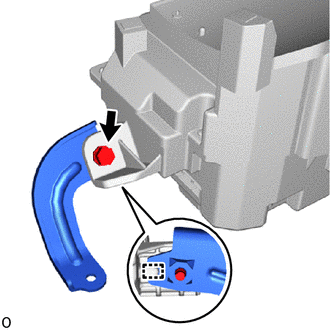

E430239

Remove the bolt.


b.

Detach the guide and remove the No. 1 meter bracket sub-assembly.


Hide 83107B 2.REMOVE NO. 2 METER BRACKET SUB-ASSEMBLY

a.

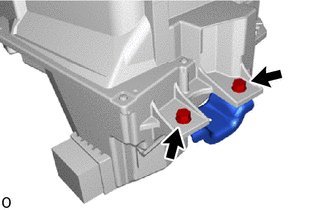

E430240

Remove the 2 bolt and No. 2 meter bracket sub-assembly.
