RM36D0EC _59 Vehicle Exterior _083111 EXTERIOR PANELS / TRIM _0400769 BACK DOOR OUTSIDE GARNISH(for Lower Side) A

EXTERIOR PANELS / TRIM BACK DOOR OUTSIDE GARNISH(for Lower Side) REASSEMBLY

PROCEDURE

Hide Display 76822A 1.INSTALL LOWER BACK DOOR GARNISH MOULDING PROTECTOR (for Type A)

HINT:: When installing the lower back door garnish moulding protector, heat the lower back door outside garnish using a heat light.

Standard:

Item	Temperature
Lower Back Door Outside Garnish	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

Do not touch the heat light and heated parts.

Touching the heat light may result in burns.

Touching heated parts for a long time may result in burns.

When reusing the lower back door outside garnish:

Using a heat light, heat the lower back door outside garnish surface.

ii.

Remove any remaining double-sided tape from the lower back door outside garnish.

iii.

Wipe off any tape adhesive residue with cleaner.

NOTICE:: ·

Installing the lower back door garnish moulding protector with any double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.

·

Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.

·

Also, clean the surface of the new lower back door outside garnish.

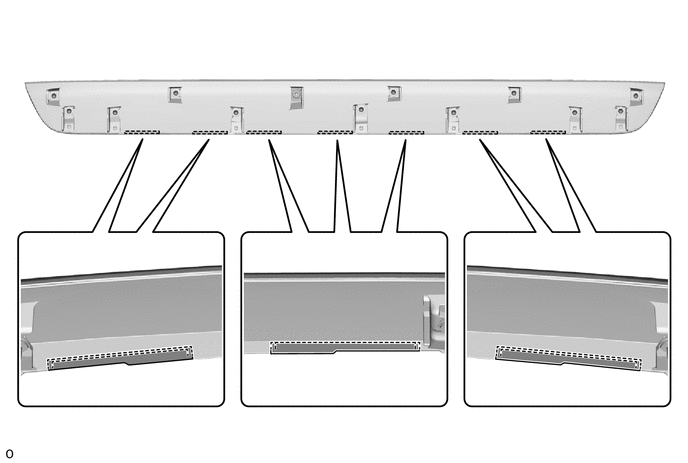

Apply primer to lower back door outside garnish on the installation area of the lower back door garnish moulding protector using a brush or felt.

5.719,3.677 5.573,3.927 true 3.875,3.573 4,3.865 true 1.458,3.688 1.625,3.917 true 1.594,3.938 1.906,4.135 0.313,0.198 10 false *a 3.938,3.865 4.25,4.063 0.313,0.198 10 false *a 5.458,3.906 5.771,4.104 0.313,0.198 10 false *a

*a	Mark-off Line	-	-
	Primer	-	-

NOTICE:: ·

Replace the brush or felt if it is dirty or has become hardened.

·

Keep any painted surface free from primer.

·

If the primer contacts a painted surface, it may leave light primer marks. Therefore, use protective tape when using liquid primer.

·

Do not touch surfaces to which primer has been applied until the lower back door garnish moulding protector has been attached.

Let the primer dry sufficiently.

NOTICE:: Do not touch applied surfaces until the primer is dry.

Recommended drying time:: 10 minutes or more (at 23°C (73°F))

Remove the release paper of the new lower back door garnish moulding protector trying not to touch the adhesional surface.

HINT:: After removing the release paper, keep the exposed adhesive free from foreign matter.

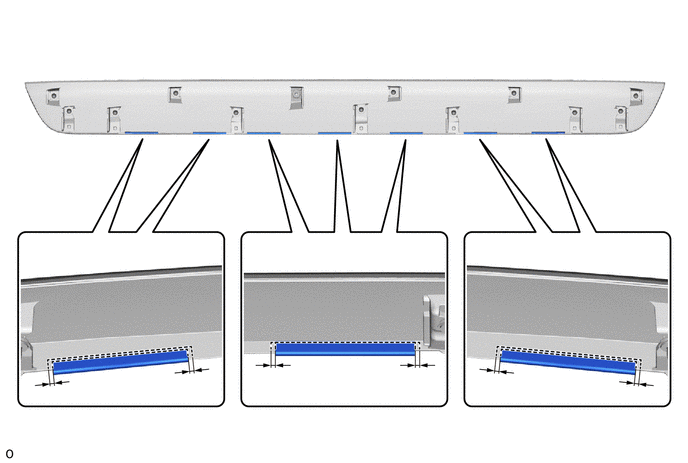

Align the 7 lower back door garnish moulding protectors with the mark-off line on the lower back door outside garnish and install it as shown in the illustration.

5.979,3.698 5.833,3.948 true 3.542,3.573 3.667,3.865 true 1.229,3.708 1.396,3.938 true 1.406,3.948 1.719,4.146 0.313,0.198 10 false *a 3.698,3.875 4.01,4.073 0.313,0.198 10 false *a 5.719,3.927 6.031,4.125 0.313,0.198 10 false *a 0.49,4.031 0.802,4.229 0.313,0.198 10 false *b 1.948,3.927 2.26,4.125 0.313,0.198 10 false *b 2.76,3.854 3.073,4.052 0.313,0.198 10 false *b 4.281,3.865 4.594,4.063 0.313,0.198 10 false *b 5.063,3.896 5.375,4.094 0.313,0.198 10 false *b 6.552,4.042 6.865,4.24 0.313,0.198 10 false *b

Mark-off Line

2.0 mm (0.0787 in.)

HINT:: Press the lower back door garnish moulding protector firmly to install it.

Hide Display 76822A 2.INSTALL LOWER BACK DOOR GARNISH MOULDING PROTECTOR (for Type B)

HINT:: ·

When installing the lower back door garnish moulding protector, heat the lower back door outside garnish using a heat light.

·

Use the same procedure to install the lower back door garnish moulding protector on the other side.

Standard:

Item	Temperature
Lower Back Door Outside Garnish	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

Do not touch the heat light and heated parts.

Touching the heat light may result in burns.

Touching heated parts for a long time may result in burns.

When reusing the back door lower outside garnish:

Using a heat light, heat the lower back door outside garnish surface.

ii.

Remove any remaining double-sided tape from the back door lower outside garnish.

iii.

Wipe off any tape adhesive residue with cleaner.

NOTICE:: ·

Installing the lower back door garnish moulding protector with any double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.

·

Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.

·

Also, clean the surface of the new lower back door outside garnish.

0,0 0,0 false

Primer

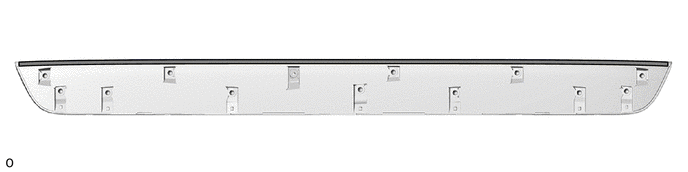

Apply primer to lower back door outside garnish on the installation area of the lower back door garnish moulding protector using a brush or felt.

NOTICE:: ·

Replace the brush or felt if it is dirty or has become hardened.

·

Keep any painted surface free from primer.

·

If the primer contacts a painted surface, it may leave light primer marks. Therefore, use protective tape when using liquid primer.

·

Do not touch surfaces to which primer has been applied until the lower back door garnish moulding protector has been attached.

Let the primer dry sufficiently.

NOTICE:: Do not touch applied surfaces until the primer is dry.

Recommended drying time:: 10 minutes or more (at 23°C (73°F))

Remove the release paper of the new lower back door garnish moulding protector trying not to touch the adhesional surface

HINT:: After removing the release paper, keep the exposed adhesive free from foreign matter.

2.083,4.083 2.563,3.969 false 0.948,1.229 0.833,0.865 true 0.708,4.292 1.021,4.49 0.313,0.198 10 false *a 2.573,4.292 2.885,4.49 0.313,0.198 10 false *a 1.885,3.99 2.083,4.188 0.198,0.198 10 false *b 0.917,1.25 1.229,1.448 0.313,0.198 10 false *c

*a	2.0 mm (0.0787 in.)
*b	Application Start Position
*c	Mark-off Line

Align the lower back door garnish moulding protector with the application start position and install it.

HINT:: Press the lower back door garnish moulding protector firmly to install it.

Hide Display 76882B 3.INSTALL LOWER BACK DOOR MOULDING PROTECTOR LH (for Type B)

HINT:: ·

When installing the lower back door moulding protector LH, heat the lower back door outside garnish using a heat light.

·

Use the same procedure to install the lower back door moulding protector LH on the other side.

Standard:

Item	Temperature
Lower Back Door Outside Garnish	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

Do not touch the heat light and heated parts.

Touching the heat light may result in burns.

Touching heated parts for a long time may result in burns.

When reusing the back door lower outside garnish:

Using a heat light, heat the lower back door outside garnish surface.

ii.

Remove any remaining double-sided tape from the back door lower outside garnish.

iii.

Wipe off any tape adhesive residue with cleaner.

NOTICE:: ·

Installing the lower back door moulding protector LH with any double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.

·

Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.

·

Also, clean the surface of the new lower back door outside garnish surface.

0,0 0,0 false

Primer

Apply primer to lower back door outside garnish on the installation area of the lower back door moulding protector LH using a brush or felt.

NOTICE:: ·

Replace the brush or felt if it is dirty or has become hardened.

·

Keep any painted surface free from primer.

·

If the primer contacts a painted surface, it may leave light primer marks. Therefore, use protective tape when using liquid primer.

·

Do not touch surfaces to which primer has been applied until the lower back door moulding protector LH has been attached.

Let the primer dry sufficiently.

NOTICE:: Do not touch applied surfaces until the primer is dry.

Recommended drying time:: 10 minutes or more (at 23°C (73°F))

Remove the release paper of the new lower back door moulding protector LH trying not to touch the adhesional surface

HINT:: After removing the release paper, keep the exposed adhesive free from foreign matter.

1.063,4.042 0.583,3.865 false 0.865,0.917 1.135,1.26 true 0.479,4.135 0.792,4.333 0.313,0.198 10 false *a 2.771,4.135 3.083,4.333 0.313,0.198 10 false *a 1.073,4.021 1.385,4.219 0.313,0.198 10 false *b 1.198,1.208 1.406,1.417 0.208,0.208 10 true *c

*a	2.0 mm (0.0787 in.)
*b	Application Start Position
*c	Mark-off Line

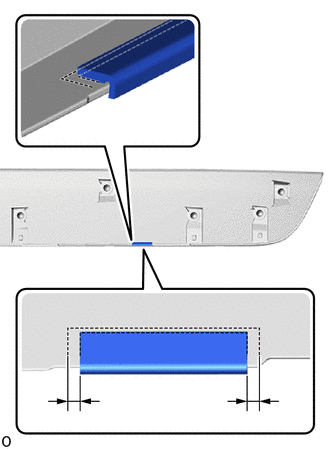

Align the lower back door moulding protector LH with the application start position and install it.

HINT:: Press the lower back door moulding protector LH firmly to install it.

Hide Display 76881B 4.INSTALL LOWER BACK DOOR MOULDING PROTECTOR RH

HINT:: ·

When installing the lower back door moulding protector RH, heat the lower back door outside garnish using a heat light.

·

Use the same procedure to install the lower back door moulding protector RH on the other side.

Standard:

Item	Temperature
Lower Back Door Outside Garnish	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

Do not touch the heat light and heated parts.

Touching the heat light may result in burns.

Touching heated parts for a long time may result in burns.

When reusing the lower back door outside garnish:

Using a heat light, heat the lower back door outside garnish surface.

ii.

Remove any remaining double-sided tape from the lower back door outside garnish.

iii.

Wipe off any tape adhesive residue with cleaner.

NOTICE:: ·

Installing the lower back door moulding protector RH with any double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.

·

Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.

·

Also, clean the surface of the new lower back door outside garnish surface.

0,0 0,0 false

Primer

Apply primer to lower back door outside garnish on the installation area of the lower back door moulding protector RH using a brush or felt.

NOTICE:: ·

Replace the brush or felt if it is dirty or has become hardened.

·

Keep any painted surface free from primer.

·

If the primer contacts a painted surface, it may leave light primer marks. Therefore, use protective tape when using liquid primer.

·

Do not touch surfaces to which primer has been applied until the lower back door moulding protector RH has been attached.

Let the primer dry sufficiently.

NOTICE:: Do not touch applied surfaces until the primer is dry.

Recommended drying time:: 10 minutes or more (at 23°C (73°F))

Remove the release paper of the new lower back door moulding protector RH trying not to touch the adhesional surface.

HINT:: After removing the release paper, keep the exposed adhesive free from foreign matter.

2.792,1.146 2.188,0.875 true 2.417,0.698 2.844,0.448 true 0.896,4.271 1.115,4.469 0.219,0.198 10 false *a 2.896,0.333 3.208,0.531 0.313,0.198 10 false *b 2.865,1.104 3.177,1.302 0.313,0.198 10 false *c

*a	2.0 mm (0.0787 in.)
*b	Application Start Position
*c	Mark-off Line

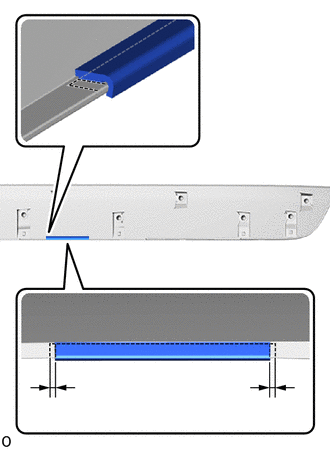

Align the lower back door moulding protector RH with the application start position and install it.

HINT:: Press the lower back door moulding protector RH firmly to install it.

Hide Display 76821 5.INSTALL UPPER BACK DOOR GARNISH MOULDING PROTECTOR

HINT:: When installing the upper back door garnish moulding protector, heat the lower back door outside garnish using a heat light.

Standard:

Item	Temperature
Lower Back Door Outside Garnish	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

Do not touch the heat light and heated parts.

Touching the heat light may result in burns.

Touching heated parts for a long time may result in burns.

When reusing the lower back door outside garnish:

Using a heat light, heat the lower back door outside garnish surface.

ii.

Remove any remaining double-sided tape from the lower back door outside garnish.

iii.

Wipe off any tape adhesive residue with cleaner.

NOTICE:: ·

Installing the upper back door garnish moulding protector with any double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.

·

Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.

·

Also, clean the surface of the new lower back door outside garnish surface.

Apply primer to lower back door outside garnish on the installation area of the upper back door garnish moulding protector using a brush or felt.

NOTICE:: ·

Replace the brush or felt if it is dirty or has become hardened.

·

Keep any painted surface free from primer.

·

If the primer contacts a painted surface, it may leave light primer marks. Therefore, use protective tape when using liquid primer.

·

Do not touch surfaces to which primer has been applied until the upper back door garnish moulding protector has been attached.

0,0 0,0 false

Primer

Let the primer dry sufficiently.

NOTICE:: Do not touch applied surfaces until the primer is dry.

Recommended drying time:: 10 minutes or more (at 23°C (73°F))

Remove the release paper of the new upper back door garnish moulding protector trying not to touch the adhesional surface.

HINT:: After removing the release paper, keep the exposed adhesive free from foreign matter.

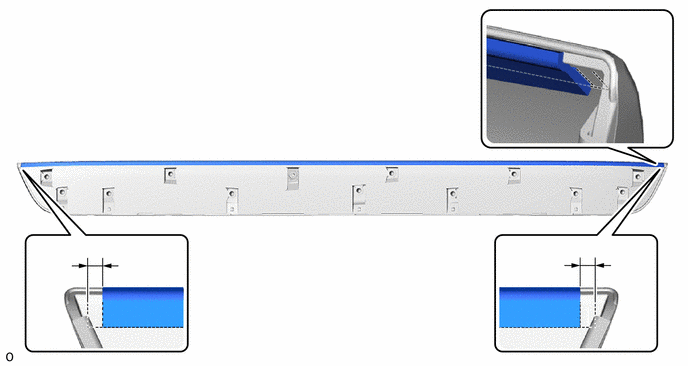

Align the upper back door garnish moulding protector with the application start position and install it to fit within the mark-off line range.

HINT:: Press the upper back door garnish moulding protector firmly to install it.

1.302,3.417 1.583,3.5 true 5.688,2.771 6.031,2.896 false 0.906,2.5 1.146,2.719 0.24,0.219 10 false *a 1.646,3.438 1.823,3.635 0.177,0.198 10 false *c 6.021,2.49 6.26,2.708 0.24,0.219 10 false *a 5.531,2.667 5.771,2.885 0.24,0.219 10 false *b

*a	3.0 mm (0.118 in.)	*b	Application Start Position
*c	Mark-off Line	-	-
