RM36D0EC _59 Vehicle Exterior _083111 EXTERIOR PANELS / TRIM _0400769 BACK DOOR OUTSIDE GARNISH(for Lower Side) A

EXTERIOR PANELS / TRIM  BACK DOOR OUTSIDE GARNISH(for Lower Side)  DISASSEMBLY


PROCEDURE

Hide 76821 1.REMOVE UPPER BACK DOOR GARNISH MOULDING PROTECTOR

HINT:

When removing the upper back door garnish moulding protector, if the double-sided tape is difficult to remove, heat the adhesive of the upper back door garnish moulding protector and lower back door outside garnish sub-assembly using a heat light.


Standard:
Item Temperature
Lower Back Door Outside Garnish Sub-assembly 20 to 30°C (68 to 86°F)
Upper Back Door Garnish Moulding Protector 20 to 30°C (68 to 86°F)


CAUTION:
E306500C35
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the lower back door outside garnish sub-assembly and upper back door garnish moulding protector excessively.


a.

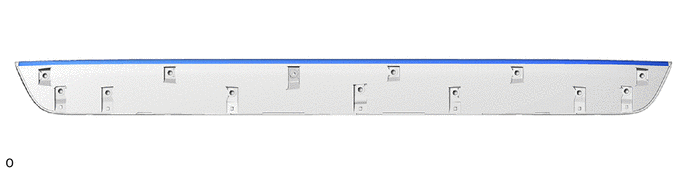

Remove the upper back door garnish moulding protector.

B524052


Hide 76881B 2.REMOVE LOWER BACK DOOR MOULDING PROTECTOR RH

HINT:
·

When removing the lower back door moulding protector RH, if the double-sided tape is difficult to remove, heat the adhesive of the lower back door moulding protector RH and lower back door outside garnish sub-assembly using a heat light.

·

Use the same procedure to remove the lower back door moulding protector RH on the other side.



Standard:
Item Temperature
Lower Back Door Outside Garnish Sub-assembly 20 to 30°C (68 to 86°F)
Lower Back Door Moulding Protector RH 20 to 30°C (68 to 86°F)


CAUTION:
E306500C35
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the lower back door outside garnish sub-assembly and lower back door moulding protector RH excessively.


a.
B524053

Remove the lower back door moulding protector RH.


Hide 76822A 3.REMOVE LOWER BACK DOOR GARNISH MOULDING PROTECTOR (for Type A)

HINT:
·

When removing the lower back door garnish moulding protector, if the double-sided tape is difficult to remove, heat the adhesive of the lower back door garnish moulding protector and lower back door outside garnish sub-assembly using a heat light.



Standard:
Item Temperature
Lower Back Door Outside Garnish Sub-assembly 20 to 30°C (68 to 86°F)
Lower Back Door Garnish Moulding Protector 20 to 30°C (68 to 86°F)


CAUTION:
E306500C35
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the lower back door outside garnish sub-assembly and lower back door garnish moulding protector excessively.


a.

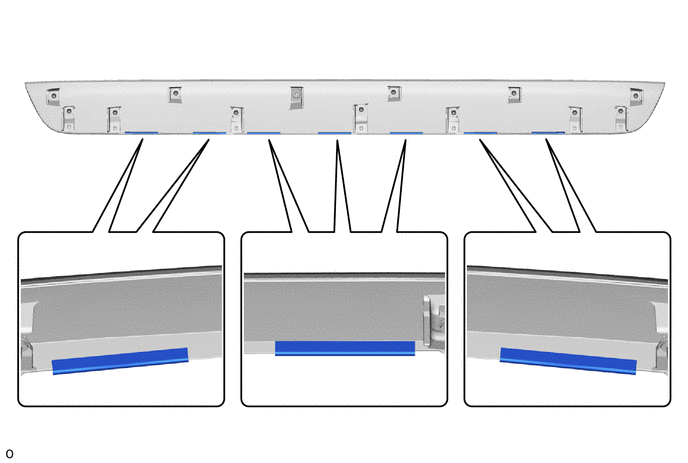

Remove the 7 lower back door garnish moulding protectors.

B555176


Hide 76822A 4.REMOVE LOWER BACK DOOR GARNISH MOULDING PROTECTOR (for Type B)

HINT:
·

When removing the lower back door garnish moulding protector, if the double-sided tape is difficult to remove, heat the adhesive of the lower back door garnish moulding protector and lower back door outside garnish sub-assembly using a heat light.

·

Use the same procedure to remove the lower back door garnish moulding protector on the other side.



Standard:
Item Temperature
Lower Back Door Outside Garnish Sub-assembly 20 to 30°C (68 to 86°F)
Lower Back Door Garnish Moulding Protector 20 to 30°C (68 to 86°F)


CAUTION:
E306500C35
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the lower back door outside garnish sub-assembly and lower back door garnish moulding protector excessively.


a.
B524054

Remove the lower back door garnish moulding protector.


Hide 76882B 5.REMOVE LOWER BACK DOOR MOULDING PROTECTOR LH (for Type B)

HINT:
·

When removing the lower back door moulding protector LH, if the double-sided tape is difficult to remove, heat the adhesive of the lower back door moulding protector LH and lower back door outside garnish sub-assembly using a heat light.

·

Use the same procedure to remove the lower back door moulding protector LH on the other side.



Standard:
Item Temperature
Lower Back Door Outside Garnish Sub-assembly 20 to 30°C (68 to 86°F)
Lower Back Door Moulding Protector LH 20 to 30°C (68 to 86°F)


CAUTION:
E306500C35
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the lower back door outside garnish sub-assembly and lower back door moulding protector LH excessively.


a.
B524055

Remove the lower back door moulding protector LH.
