RM36D0EC _59 Vehicle Exterior _083111 EXTERIOR PANELS / TRIM _0400768 BACK DOOR OUTSIDE GARNISH(for Upper Side) A

EXTERIOR PANELS / TRIM  BACK DOOR OUTSIDE GARNISH(for Upper Side)  DISASSEMBLY


PROCEDURE

Hide 76816B 1.REMOVE LOWER BACK DOOR OUTSIDE GARNISH MOULDING LH (for Type B)

a.

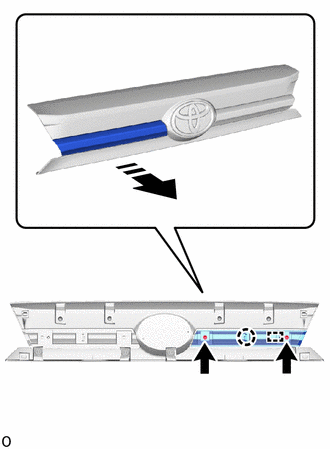

B571340

Remove the 2 screws.


b.

Detach the guide and claw and remove the lower back door outside garnish moulding LH as shown in the illustration.


Hide 76815C 2.REMOVE LOWER BACK DOOR OUTSIDE GARNISH MOULDING RH (for Type B)

HINT:

Use the same procedure described for the LH side.


Hide 76824 3.REMOVE BACK DOOR GARNISH MOULDING PROTECTOR LH (for Type A)

HINT:
·

When removing the back door garnish moulding protector LH, if the double-sided tape is difficult to remove, heat the adhesive of the back door garnish moulding protector LH and back door outside garnish sub-assembly using a heat light.

·

Use the same procedure to remove the back door garnish moulding protector LH on the other side.



Standard:
Item Temperature
Back Door Outside Garnish Sub-assembly 20 to 30°C (68 to 86°F)
Back Door Garnish Moulding Protector LH 20 to 30°C (68 to 86°F)


CAUTION:
E306500C35
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the back door outside garnish sub-assembly and back door garnish moulding protector LH excessively.


a.
B524041

Remove the back door garnish moulding protector LH.


Hide 76823 4.REMOVE BACK DOOR GARNISH MOULDING PROTECTOR RH

HINT:

When removing the back door garnish moulding protector RH, if the double-sided tape is difficult to remove, heat the adhesive of the back door garnish moulding protector RH and back door outside garnish sub-assembly using a heat light.


Standard:
Item Temperature
Back Door Outside Garnish Sub-assembly 20 to 30°C (68 to 86°F)
Back Door Garnish Moulding Protector RH 20 to 30°C (68 to 86°F)


CAUTION:
E306500C35
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the back door outside garnish sub-assembly and back door garnish moulding protector RH excessively.


a.

for Type A:

i.
B524042

Remove the 3 back door garnish moulding protector RH.



b.

for Type B:

i.
B571339

Remove the 3 back door garnish moulding protector RH.
