EXTERIOR PANELS / TRIM  NAME PLATE  REMOVAL


PROCEDURE

Hide 75741E 1.REMOVE SYMBOL EMBLEM (for Type A)

HINT:

When removing the symbol emblem, if the double-sided tape is difficult to remove, heat the adhesive of the symbol emblem and back door outside garnish sub-assembly using a heat light.


Standard:
Item Temperature
Back Door Outside Garnish Sub-assembly 20 to 30°C (68 to 86°F)
Symbol Emblem 20 to 30°C (68 to 86°F)


CAUTION:
E306500C35
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the back door outside garnish sub-assembly and symbol emblem excessively.


a.
B524186
0,0 0,0 false
V100155

Protective Tape

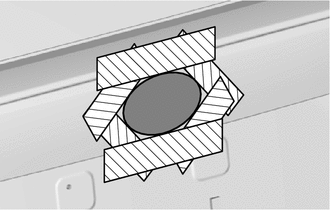

Apply protective tape around the symbol emblem.


b.
B571389

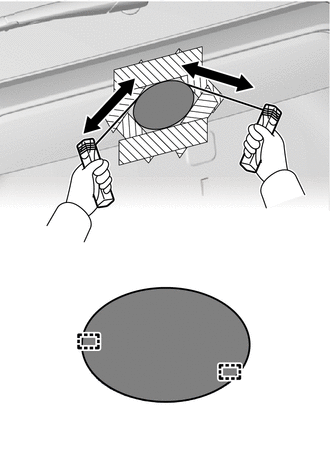

1.583,2.021 1.167,2.021 false 2.333,1.885 2.469,1.063 false 0.813,3.552 0.51,3.552 false 2.813,3.865 2.51,3.865 false 1.635,1.927 1.833,2.125 0.198,0.198 10 true *a 2.208,1.896 2.406,2.094 0.198,0.198 10 true *b 2.865,3.781 3.177,3.979 0.313,0.198 10 false *c 0.323,3.458 0.635,3.656 0.313,0.198 10 false *c
*a Wooden Block
*b Piano Wire
*c Boss Position
V100155

Protective Tape


Insert the piano wire between the back door outside garnish sub-assembly and symbol emblem.

HINT:

Be careful of the boss positions.



c.

Tie objects that can serve as handles (for example, wooden blocks) to the piano wire ends.


d.

Pull the piano wire to scrape off the double-sided tape that holds the symbol emblem to the back door outside garnish sub-assembly.

NOTICE:

Be careful not to damage the back door outside garnish sub-assembly.



e.

Remove the symbol emblem.


f.

Remove the protective tape.


Hide 75741E 2.REMOVE SYMBOL EMBLEM (for Type B)

HINT:

When removing the symbol emblem, if the double-sided tape is difficult to remove, heat the adhesive of the symbol emblem and back door outside garnish sub-assembly using a heat light.


Standard:
Item Temperature
Back Door Outside Garnish Sub-assembly 20 to 30°C (68 to 86°F)
Symbol Emblem 20 to 30°C (68 to 86°F)


CAUTION:
E306500C35
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the back door outside garnish sub-assembly and symbol emblem excessively.


a.
B571308
0,0 0,0 false
V100155

Protective Tape

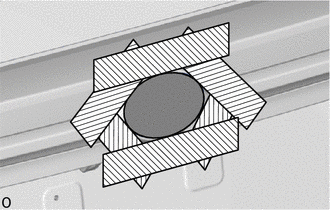

Apply protective tape around the symbol emblem.


b.
B571309

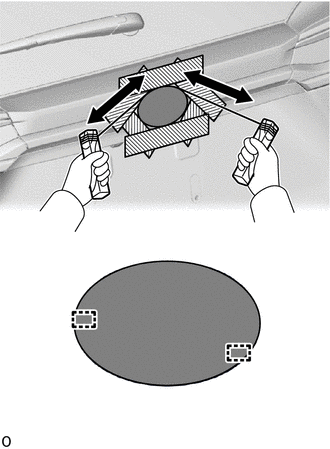

1.552,1.99 1.135,1.99 true 2.292,1.635 2.479,1.188 true 0.74,3.323 0.438,3.323 false 2.917,3.667 2.615,3.667 false 1.563,1.885 1.76,2.083 0.198,0.198 10 true *a 2.115,1.635 2.313,1.833 0.198,0.198 10 true *b 2.969,3.594 3.281,3.792 0.313,0.198 10 false *c 0.25,3.229 0.563,3.427 0.313,0.198 10 false *c
*a Wooden Block
*b Piano Wire
*c Boss Position
V100155

Protective Tape


Insert the piano wire between the back door outside garnish sub-assembly and symbol emblem.

HINT:

Be careful of the boss positions.



c.

Tie objects that can serve as handles (for example, wooden blocks) to the piano wire ends.


d.

Pull the piano wire to scrape off the double-sided tape that holds the symbol emblem to the back door outside garnish sub-assembly.

NOTICE:

Be careful not to damage the back door outside garnish sub-assembly.



e.

Remove the symbol emblem.


f.

Remove the protective tape.


Hide 75441E 3.REMOVE BACK DOOR NO. 1 NAME PLATE

HINT:

When removing the back door No. 1 name plate, if the double-sided tape is difficult to remove, heat the adhesive of the back door No. 1 name plate and back door panel using a heat light.


Standard:
Item Temperature
Back Door Panel 40 to 60°C (104 to 140°F)
Back Door No. 1 Name Plate 20 to 30°C (68 to 86°F)


CAUTION:
E306500C35
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the back door panel and back door No. 1 name plate excessively.


a.
B524162
0,0 0,0 false
V100155

Protective Tape

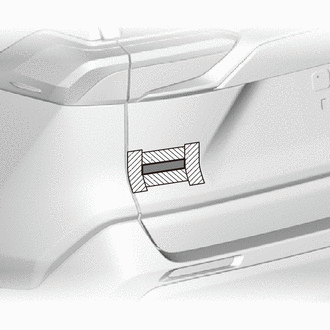

Apply protective tape around the back door No. 1 name plate.


b.
B524165
0.896,1.615 0.594,1.365 false 1.531,1.594 1.729,1.521 false 0.385,1.188 0.563,1.365 0.177,0.177 10 true *a 1.333,1.521 1.51,1.698 0.177,0.177 10 true *b
*a Wooden Block
*b Piano Wire
V100155

Protective Tape

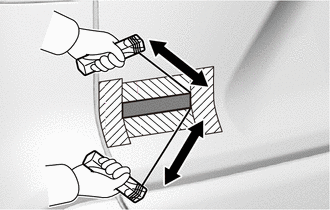

Insert the piano wire between the back door panel and back door No. 1 name plate.


c.

Tie objects that can serve as handles (for example, wooden blocks) to the piano wire ends.


d.

Pull the piano wire to scrape off the double-sided tape that holds the back door No. 1 name plate to the back door panel.

NOTICE:

Be careful not to damage the back door panel.



e.

Remove the back door No. 1 name plate.


f.

Remove the protective tape.


Hide 75445A 4.REMOVE BACK DOOR NO. 5 NAME PLATE

HINT:

When removing the back door No. 5 name plate, if the double-sided tape is difficult to remove, heat the adhesive of the back door No. 5 name plate and back door panel using a heat light.


Standard:
Item Temperature
Back Door Panel 40 to 60°C (104 to 140°F)
Back Door No. 5 Name Plate 20 to 30°C (68 to 86°F)


CAUTION:
E306500C35
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the back door panel and back door No. 5 name plate excessively.


a.
B540071
0,0 0,0 false
V100155

Protective Tape

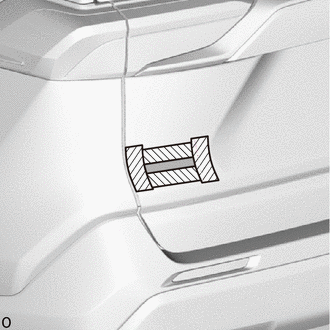

Apply protective tape around the back door No. 5 name plate.


b.

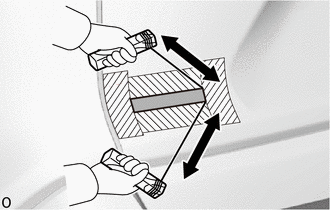

B540072
0.677,0.646 0.969,0.646 true 1.573,1.51 1.865,1.51 true 0.51,0.573 0.698,0.74 0.188,0.167 10 true *a 1.375,1.448 1.531,1.625 0.156,0.177 10 true *b
*a Wooden Block
*b Piano Wire
V100155

Protective Tape


Insert the piano wire between the back door panel and back door No. 5 name plate.


c.

Tie objects that can serve as handles (for example, wooden blocks) to the piano wire ends.


d.

Pull the piano wire to scrape off the double-sided tape that holds the back door No. 5 name plate to the back door panel.

NOTICE:

Be careful not to damage the back door panel.



e.

Remove the back door No. 5 name plate.


f.

Remove the protective tape.


Hide 75443 5.REMOVE BACK DOOR NO. 3 NAME PLATE

HINT:

When removing the back door No. 3 name plate, if the double-sided tape is difficult to remove, heat the adhesive of the back door No. 3 name plate and back door panel using a heat light.


Standard:
Item Temperature
Back Door Panel 40 to 60°C (104 to 140°F)
Back Door No. 3 Name Plate 20 to 30°C (68 to 86°F)


CAUTION:
E306500C35
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the back door panel and back door No. 3 name plate excessively.


a.

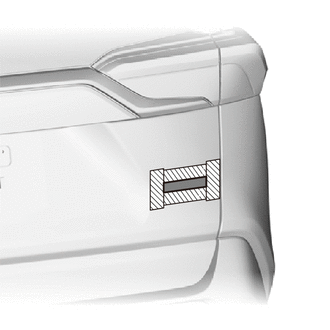

B524163
0,0 0,0 false
V100155

Protective Tape


Apply protective tape around the back door No. 3 name plate.


b.
B524166
0.99,1.635 0.635,1.417 true 1.802,1.563 1.594,1.573 true 1.406,1.51 1.573,1.677 0.167,0.167 10 true *b 0.448,1.271 0.615,1.458 0.167,0.188 10 true *a
*a Wooden Block
*b Piano Wire
V100155

Protective Tape

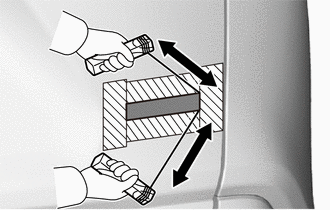

Insert the piano wire between the back door panel and back door No. 3 name plate.


c.

Tie objects that can serve as handles (for example, wooden blocks) to the piano wire ends.


d.

Pull the piano wire to scrape off the double-sided tape that holds the back door No. 3 name plate to the back door panel.

NOTICE:

Be careful not to damage the back door panel.



e.

Remove the back door No. 3 name plate.


f.

Remove the protective tape.


Hide 75444A 6.REMOVE BACK DOOR NO. 4 NAME PLATE

HINT:

When removing the back door No. 4 name plate, if the double-sided tape is difficult to remove, heat the adhesive of the back door No. 4 name plate and back door panel using a heat light.


Standard:
Item Temperature
Back Door Panel 40 to 60°C (104 to 140°F)
Back Door No. 4 Name Plate 20 to 30°C (68 to 86°F)


CAUTION:
E306500C35
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the back door panel and back door No. 4 name plate excessively.


a.
B524164
0,0 0,0 false
V100155

Protective Tape

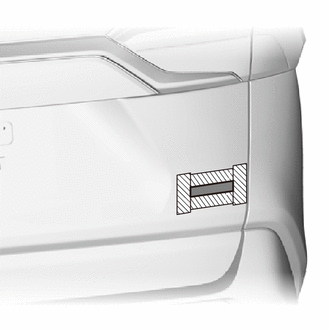

Apply protective tape around the back door No. 4 name plate.


b.
B524167
0.719,0.667 1.01,0.667 true 1.5,0.917 1.792,0.917 true 0.531,0.594 0.688,0.771 0.156,0.177 10 true *a 1.323,0.833 1.479,1.01 0.156,0.177 10 true *b
*a Wooden Block
*b Piano Wire
V100155

Protective Tape

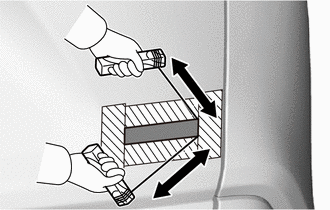

Insert the piano wire between the back door panel and back door No. 4 name plate.


c.

Tie objects that can serve as handles (for example, wooden blocks) to the piano wire ends.


d.

Pull the piano wire to scrape off the double-sided tape that holds the back door No. 4 name plate to the back door panel.

NOTICE:

Be careful not to damage the back door panel.



e.

Remove the back door No. 4 name plate.


f.

Remove the protective tape.


Hide 75362 7.REMOVE FRONT FENDER NO. 2 NAME PLATE

HINT:

When removing the front fender No. 2 name plate, if the double-sided tape is difficult to remove, heat the adhesive of the front fender No. 2 name plate and fender panel using a heat light.


Standard:
Item Temperature
Fender Panel 40 to 60°C (104 to 140°F)
Front Fender No. 2 Name Plate 20 to 30°C (68 to 86°F)


CAUTION:
E306500C35
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the fender panel and front fender No. 2 name plate excessively.


a.

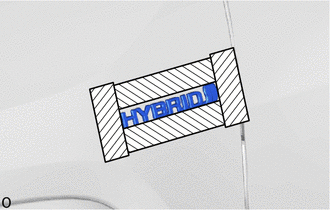

B523871
0,0 0,0 false
V100155

Protective Tape


Apply protective tape around the front fender No. 2 name plate.


b.

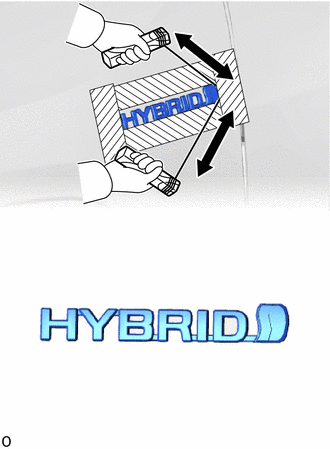

B523872
2.292,2.063 1.875,1.792 true 1.75,2.438 1.74,2.042 true 1.698,2.5 2.01,2.698 0.313,0.198 10 false *a 2.365,2.083 2.677,2.281 0.313,0.198 10 false *b
*a Wooden Block
*b Piano Wire
V100155

Protective Tape


Insert the piano wire between the fender panel and front fender No. 2 name plate.


c.

Tie objects that can serve as handles (for example, wooden blocks) to the piano wire ends.


d.

Pull the piano wire to scrape off the double-sided tape that holds the front fender No. 2 name plate to the fender panel.

NOTICE:

Be careful not to damage the fender panel.



e.

Remove the front fender No. 2 name plate.


f.

Remove the protective tape.


Hide 75361A 8.REMOVE FRONT FENDER NO. 1 NAME PLATE

HINT:

When removing the front fender No. 1 name plate, if the double-sided tape is difficult to remove, heat the adhesive of the front fender No. 1 name plate and fender panel using a heat light.


Standard:
Item Temperature
Fender Panel 40 to 60°C (104 to 140°F)
Front Fender No. 1 Name Plate 20 to 30°C (68 to 86°F)


CAUTION:
E306500C35
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the fender panel and front fender No. 1 name plate excessively.


a.

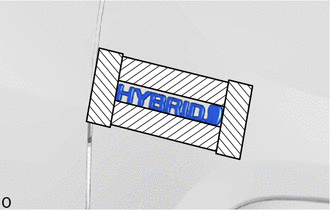

B523869
0,0 0,0 false
V100155

Protective Tape


Apply protective tape around the front fender No. 1 name plate.


b.

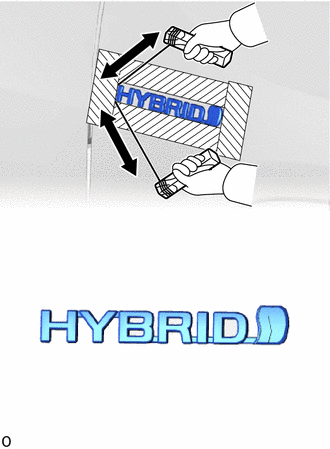

B523870
1.24,2.031 1.604,1.792 true 1.74,2.469 1.729,2.073 true 1.688,2.542 2,2.74 0.313,0.198 10 false *a 1.063,2.052 1.375,2.25 0.313,0.198 10 false *b
*a Wooden Block
*b Piano Wire
V100155

Protective Tape


Insert the piano wire between the fender panel and front fender No. 1 name plate.


c.

Tie objects that can serve as handles (for example, wooden blocks) to the piano wire ends.


d.

Pull the piano wire to scrape off the double-sided tape that holds the front fender No. 1 name plate to the fender panel.

NOTICE:

Be careful not to damage the fender panel.



e.

Remove the front fender No. 1 name plate.


f.

Remove the protective tape.
