RM36D0EC _V1 General _083136 MAINTENANCE _0403709 TRANSMITTER BATTERY(w/ Smart Entry and Start System) A

MAINTENANCE  TRANSMITTER BATTERY(w/ Smart Entry and Start System)  INSTALLATION


PROCEDURE

Hide 89745C 1.INSTALL TRANSMITTER BATTERY

a.

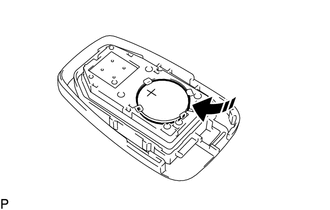

B476165C01
0,0 0,0 false
V113147

Install in this Direction


Install the transmitter battery (lithium battery (CR2032)).

NOTICE:
·

Do not bend the transmitter battery electrode during installation.

·

Keep the inside of the transmitter housing cover free of dust and oil.

·

When replacing the transmitter battery (lithium battery (CR2032)), remove any static electricity from your body by touching the vehicle, etc., as the static electricity may damage the electrical key transmitter sub-assembly.




b.

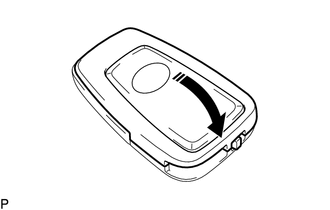

B476167C01
0,0 0,0 false
V113147

Install in this Direction


Install the transmitter housing cover as shown in the illustration.


c.

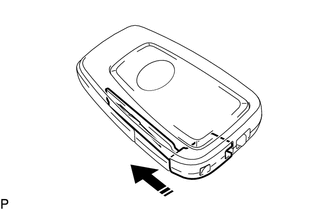

B469760C01
0,0 0,0 false
V113147

Install in this Direction


Install the emergency key as shown in the illustration.


d.

After completing work, check that the LEDs illuminate when the switches are pressed.
