DOOR / HATCH  FUEL LID OPENER MOTOR ASSEMBLY  INSPECTION


PROCEDURE

Hide 77030A 1.INSPECT FUEL LID LOCK WITH MOTOR ASSEMBLY

a.
B523364C02
1.958,0.708 2.292,0.708 true 1.729,0.781 1.729,1.063 true 1.104,0.708 1.438,0.708 true 0.479,2.99 0.635,3.188 0.156,0.198 10 false A 0.292,0.146 0.698,0.406 0.406,0.26 10 false *a 2.344,0.635 2.5,0.833 0.156,0.198 10 false B 1.688,1.094 1.844,1.292 0.156,0.198 10 false E 0.969,0.646 1.125,0.844 0.156,0.198 10 false B

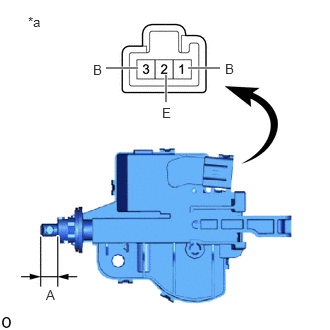

*a Component without harness connected
(Fuel Lid Lock with Motor Assembly)


Check the operation of the fuel lid lock with motor assembly.

i.

Apply auxiliary battery voltage to the fuel lid lock with motor assembly connector, and check that the fuel lid lock with motor assembly operates smoothly as follows.

OK:
Auxiliary Battery Connection Specified Condition
Auxiliary battery positive (+) → Terminal 1
Auxiliary battery negative (-) → Terminal 2 		Open Operation


If the result is not as specified, replace the fuel lid lock with motor assembly.


ii.

Measure the shaft stroke.

Standard:
Area Condition Specified Condition
A Lever pulled 15.45 to 16.65 mm (0.608 to 0.656 in.)


If the result is not as specified, replace the fuel lid lock with motor assembly.



b.

Check the resistance of the limit switch.

i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
3 (B) - 2 (E) Fuel Lid Open Below 1 Ω
3 (B) - 2 (E) Fuel Lid Close 10 kΩ or higher


If the result is not as specified, replace the fuel lid lock with motor assembly.
