RM36D0EC _59 Vehicle Exterior _083093 DOOR / HATCH _0403696 POWER BACK DOOR TOUCH SENSOR A

DOOR / HATCH POWER BACK DOOR TOUCH SENSOR REMOVAL

PROCEDURE

Hide Display 67939B 1.REMOVE BACK DOOR CENTER GARNISH

Hide Display 67938A 2.REMOVE BACK DOOR SIDE GARNISH LH

Hide Display 67937B 3.REMOVE BACK DOOR SIDE GARNISH RH

Hide Display 67199 4.REMOVE BACK DOOR HANDLE COVER

HINT:: Use the same procedure for the RH and LH sides.; Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR>DISASSEMBLY201910,202004,_59,_083093,_0403691,RM100000001JUGK_01_0034,202004,202304,_59,_083093,_0403691,RM100000001MEBD_01_0034,202304,999999,_59,_083093,_0403691,RM1000000029SAX_01_0034,

Hide Display 67750 5.REMOVE BACK DOOR TRIM BOARD ASSEMBLY

Hide Display 84280D 6.REMOVE POWER BACK DOOR SENSOR ASSEMBLY LH

0,0 0,0 false

	Screw
	Connector

Disconnect the connector.

Remove the 4 screws.

0,0 0,0 false

Protective Tape

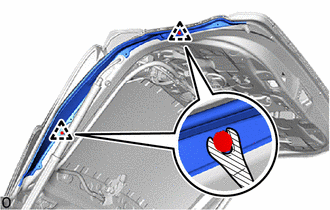

Using a clip remover with its tip wrapped with protective tape, remove the 2 clips and power back door sensor assembly LH.

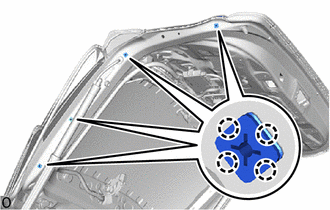

Detach the claw and remove the 4 grommets.

Hide Display 84270G 7.REMOVE POWER BACK DOOR SENSOR ASSEMBLY RH
