RM36D0EC _59 Vehicle Exterior _083093 DOOR / HATCH _0403694 POWER BACK DOOR CONTROL SWITCH A

DOOR / HATCH POWER BACK DOOR CONTROL SWITCH REMOVAL

PROCEDURE

Hide Display 67914B 1.REMOVE FRONT DOOR SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL201910,202004,_58,_083106,_0400609,RM100000001J8OU_01_0069,202004,202304,_58,_083106,_0400609,RM100000001MYUH_01_0069,202304,999999,_58,_083106,_0400609,RM1000000029RST_01_0069,

Hide Display 62112 2.REMOVE COWL SIDE TRIM BOARD LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL201910,202004,_58,_083106,_0400607,RM100000001J8ON_01_0028,202004,202104,_58,_083106,_0400607,RM100000001MIPG_01_0028,202104,202304,_58,_083106,_0400607,RM100000001W6F2_01_0028,202304,202405,_58,_083106,_0400607,RM1000000029PZ2_01_0028,202405,202409,_58,_083106,_0400607,RM100000002LWUN_01_0028,202409,999999,_58,_083106,_0400607,RM100000002NG5W_01_0028,

Hide Display 55606 3.REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL201910,202004,_58,_083106,_0400607,RM100000001J8ON_01_0002,202004,202104,_58,_083106,_0400607,RM100000001MIPG_01_0002,202104,202304,_58,_083106,_0400607,RM100000001W6F2_01_0002,202304,202405,_58,_083106,_0400607,RM1000000029PZ2_01_0002,202405,202409,_58,_083106,_0400607,RM100000002LWUN_01_0002,202409,999999,_58,_083106,_0400607,RM100000002NG5W_01_0002,

Hide Display 62312B 4.REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH

HINT:: Pull back the front door opening trim weatherstrip LH so that the instrument side panel LH can be removed.; Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR OPENING TRIM WEATHERSTRIP>REMOVAL201910,999999,_59,_083093,_0403688,RM100000001JUGA_02_0003,

Hide Display 55545 5.REMOVE FUSE BOX OPENING COVER

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL201910,202004,_58,_083106,_0400607,RM100000001J8ON_01_0009,202004,202104,_58,_083106,_0400607,RM100000001MIPG_01_0009,202104,202304,_58,_083106,_0400607,RM100000001W6F2_01_0009,202304,202405,_58,_083106,_0400607,RM1000000029PZ2_01_0009,202405,202409,_58,_083106,_0400607,RM100000002LWUN_01_0009,202409,999999,_58,_083106,_0400607,RM100000002NG5W_01_0009,

Hide Display 84966 6.REMOVE POWER BACK DOOR CONTROL SWITCH

a.

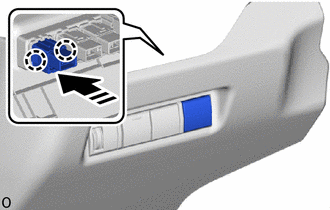

B559304C01

0,0 0,0 false

V113147

Remove in this Direction

Detach the claw and remove the power back door control switch.
