DOOR / HATCH  BACK DOOR WEATHERSTRIP  INSTALLATION


PROCEDURE

Hide 67881A 1.INSTALL BACK DOOR WEATHERSTRIP

a.

Remove any non-drying sealer on the body with non-residue solvent.


b.

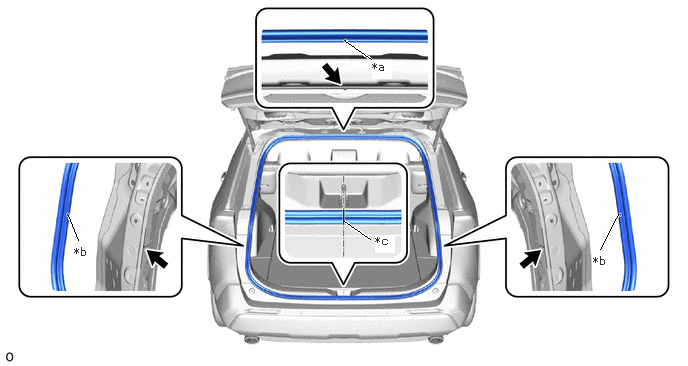

Align the joint of a new back door weatherstrip with the back door lock striker and temporarily install the back door weatherstrip.

B526396C01
3.583,2.302 3.854,2.49 true 3.594,0.427 3.865,0.615 true 0.708,2.24 0.813,2.5 true 6.438,2.229 6.25,2.594 true 3.906,2.438 4.115,2.625 0.208,0.188 10 true *c 3.875,0.625 4.083,0.813 0.208,0.188 10 true *a 0.771,2.552 0.979,2.74 0.208,0.188 10 true *b 6.177,2.646 6.385,2.833 0.208,0.188 10 true *b
*a Matchmarks (Yellow) *b Matchmarks (Light Blue)
*c Joint - -
V100135

Flange Position - -



c.

Align the match marks on the back door weatherstrip with the flanges on the vehicle body indicated by the arrows, and install the back door weatherstrip.

NOTICE:

Always align the match mark when installing the part. If the match mark position is out of place, coolant leaks may occur.


HINT:

To easily install the weatherstrip, first install the area with the match mark as shown in the illustration. Then install the part toward the corners and push any excess length into the corners.
