DOOR / HATCH  FRONT DOOR OPENING TRIM WEATHERSTRIP  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure below is for the LH side.



PROCEDURE

Hide 62312B 1.INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH

a.

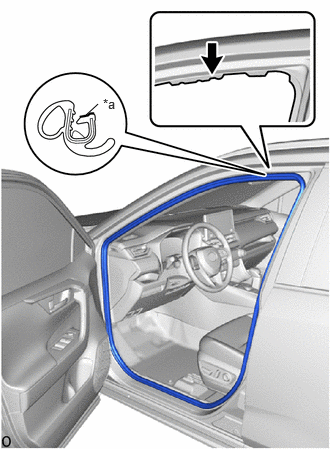

B526424C01
1.021,1.083 0.896,1.198 false 1.073,1 1.385,1.156 0.313,0.156 10 false *a
*a Paint Mark
V100135

Cutout


Align the paint mark on the front door opening trim weatherstrip LH with the cutout on the flange indicated in the illustration to install it.

Paint Mark:
Location Color
LH Side Yellow
RH Side Green


NOTICE:
·

Always align the paint mark when installing the part. If the paint mark position is out of place, water leaks may occur.

·

After the installation, check that the corners are properly installed.



HINT:

To easily install the weatherstrip, first install the area with the paint mark as shown in the illustration. Then install the part toward the corners and push any excess length into the corners.
