RM36D0EC _58 Vehicle Interior _083092 DOOR LOCK _0403682 BACK DOOR LOCK A

DOOR LOCK BACK DOOR LOCK REMOVAL

PROCEDURE

Hide Display 67939B 1.REMOVE BACK DOOR CENTER GARNISH

Hide Display 67938A 2.REMOVE BACK DOOR SIDE GARNISH LH

Hide Display 67937B 3.REMOVE BACK DOOR SIDE GARNISH RH

Hide Display 67199 4.REMOVE BACK DOOR HANDLE COVER

HINT:: Use the same procedure for the RH and LH sides.; Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR>DISASSEMBLY201910,202004,_59,_083093,_0403691,RM100000001JUGK_01_0034,202004,202304,_59,_083093,_0403691,RM100000001MEBD_01_0034,202304,999999,_59,_083093,_0403691,RM1000000029SAX_01_0034,

Hide Display 67750 5.REMOVE BACK DOOR TRIM BOARD ASSEMBLY

Hide Display 69350P 6.REMOVE BACK DOOR LOCK WITH COURTESY LIGHT SWITCH ASSEMBLY (w/ Power Back Door)

0,0 0,0 false

	Bolt
	Connector

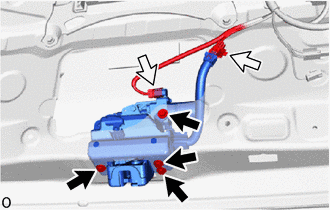

Disconnect the 2 connectors.

Remove the 4 bolts and back door lock with courtesy light switch assembly.

Hide Display 69350P 7.REMOVE BACK DOOR LOCK WITH COURTESY LIGHT SWITCH ASSEMBLY (w/o Power Back Door)

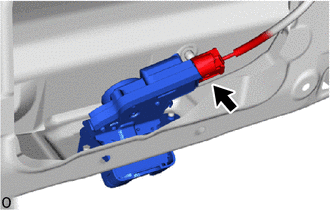

Disconnect the connector.

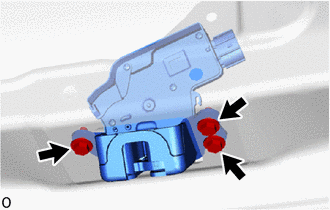

Remove the 3 bolts and back door lock with courtesy light switch assembly.
