RM36D0EC _58 Vehicle Interior _083092 DOOR LOCK _0403679 UNLOCK WARNING SWITCH A

DOOR LOCK UNLOCK WARNING SWITCH REMOVAL

PROCEDURE

Hide Display 45287 1.REMOVE LOWER STEERING COLUMN COVER

Hide Display 84052 2.REMOVE UN-LOCK WARNING SWITCH ASSEMBLY

Insert the key into the ignition key cylinder.

Disconnect the connector.

0,0 0,0 false

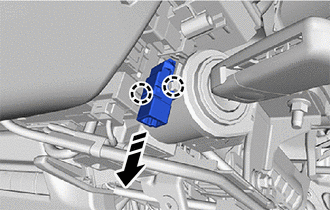

Remove in this Direction

Detach the claw and remove the un-lock warning switch assembly as shown in the illustration.
