RM36D0EC _51 Engine / Hybrid System _083063 M20D-FKS COOLING _0403606 FLOW SHUTTING VALVE(for CVT) A

M20D-FKS COOLING FLOW SHUTTING VALVE(for CVT) REMOVAL

PROCEDURE

Hide Display 53895B 1.REMOVE FRONT FENDER FRONT SPLASH SHIELD RH

Click hereEngine / Hybrid System>M20D-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL201910,202004,_51,_083059,_0403046,RM100000001JN1J_01_0303,202004,202304,_51,_083059,_0403046,RM100000001N2I4_01_0303,202304,202405,_51,_083059,_0403046,RM1000000029XAE_01_0303,202405,202409,_51,_083059,_0403046,RM100000002JNSM_01_0303,202409,999999,_51,_083059,_0403046,RM100000002NRBV_01_0303,

Hide Display 53896B 2.REMOVE FRONT FENDER FRONT SPLASH SHIELD LH

Click hereEngine / Hybrid System>M20D-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL201910,202004,_51,_083059,_0403046,RM100000001JN1J_01_0304,202004,202304,_51,_083059,_0403046,RM100000001N2I4_01_0304,202304,202405,_51,_083059,_0403046,RM1000000029XAE_01_0304,202405,202409,_51,_083059,_0403046,RM100000002JNSM_01_0304,202409,999999,_51,_083059,_0403046,RM100000002NRBV_01_0304,

Hide Display 51441 3.REMOVE NO. 1 ENGINE UNDER COVER

Click hereEngine / Hybrid System>M20D-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL201910,202004,_51,_083059,_0403046,RM100000001JN1J_01_0003,202004,202304,_51,_083059,_0403046,RM100000001N2I4_01_0003,202304,202405,_51,_083059,_0403046,RM1000000029XAE_01_0003,202405,202409,_51,_083059,_0403046,RM100000002JNSM_01_0003,202409,999999,_51,_083059,_0403046,RM100000002NRBV_01_0003,

Hide Display 51420 4.REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY

Click hereEngine / Hybrid System>M20D-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL201910,202004,_51,_083059,_0403046,RM100000001JN1J_01_0004,202004,202304,_51,_083059,_0403046,RM100000001N2I4_01_0004,202304,202405,_51,_083059,_0403046,RM1000000029XAE_01_0004,202405,202409,_51,_083059,_0403046,RM100000002JNSM_01_0004,202409,999999,_51,_083059,_0403046,RM100000002NRBV_01_0004,

Hide Display 5.DRAIN ENGINE COOLANT

Click hereGeneral>MAINTENANCE>M20D-FKS COOLANT>REPLACEMENT201910,999999,_V1,_083136,_0403615,RM100000001JU0H_02_0001,

Hide Display 12601B 6.REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

Click hereEngine / Hybrid System>M20D-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL201910,202004,_51,_083059,_0403046,RM100000001JN1J_01_0288,202004,202304,_51,_083059,_0403046,RM100000001N2I4_01_0288,202304,202405,_51,_083059,_0403046,RM1000000029XAE_01_0288,202405,202409,_51,_083059,_0403046,RM100000002JNSM_01_0288,202409,999999,_51,_083059,_0403046,RM100000002NRBV_01_0288,

Hide Display 17751 7.REMOVE NO. 1 INLET AIR CLEANER

Click hereEngine / Hybrid System>M20D-FKS (ENGINE CONTROL)>THROTTLE BODY>REMOVAL201910,202304,_51,_083058,_0401818,RM100000001JDU0_01_0024,202304,999999,_51,_083058,_0401818,RM100000002AC3Q_01_0024,

Hide Display 8.REMOVE AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE

Click hereEngine / Hybrid System>M20D-FKS (ENGINE CONTROL)>THROTTLE BODY>REMOVAL201910,202304,_51,_083058,_0401818,RM100000001JDU0_01_0023,202304,999999,_51,_083058,_0401818,RM100000002AC3Q_01_0023,

Hide Display 16671 9.REMOVE FLOW SHUTTING VALVE (WATER VALVE)

a.

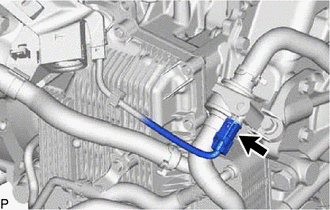

A434857

Disconnect the flow shutting valve (water valve) connector.

b.

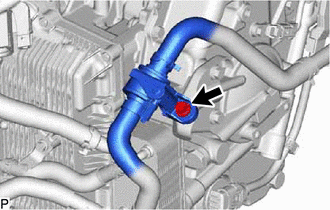

A434858

Remove the bolt and flow shutting valve (water valve).

c.

A434859

Slide the clip and disconnect the No. 4 water by-pass hose from the flow shutting valve (water valve).

d.

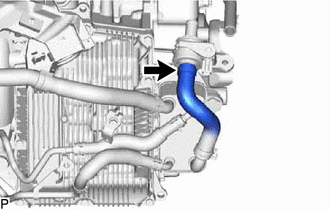

A434860

Slide the clip and disconnect the No. 2 water by-pass hose from the flow shutting valve (water valve).
