M20D-FKS COOLING  FLOW SHUTTING VALVE(for CVT)  INSTALLATION

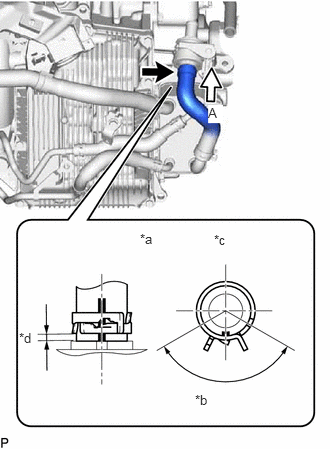

1.458,2.406 1.771,2.563 0.313,0.156 10 false *a 2.031,4.083 2.344,4.24 0.313,0.156 10 false *b 2.229,2.417 2.542,2.573 0.313,0.156 10 false *c 0.198,3.438 0.51,3.594 0.313,0.156 10 false *d 2.167,1.094 2.323,1.281 0.156,0.188 10 true A

*a	View A
*b	120°
*c	Upper Side
*d	2 to 5 mm (0.0787 to 0.197 in.)

Connect the No. 2 water by-pass hose to the flow shutting valve (water valve) and slide the clip to secure it.

NOTICE:

·

Make sure to slide the No. 2 water by-pass hose until it contacts the hose stopper of the flow shutting valve (water valve).

·

Make sure that the tabs of the clip are within the area shown in the illustration.

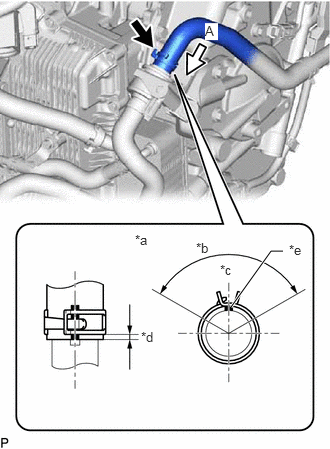

2.406,3.198 2.823,2.615 2.823,2.615 2.948,2.615 true 1.406,2.417 1.719,2.573 0.313,0.156 10 false *a 2.292,2.729 2.604,2.885 0.313,0.156 10 false *c 2.042,2.5 2.354,2.656 0.313,0.156 10 false *b 1.469,3.427 1.781,3.583 0.313,0.156 10 false *d 2.135,0.24 2.271,0.417 0.135,0.177 10 true A 3.01,2.521 3.302,2.698 0.292,0.177 10 false *e

*a	View A
*b	120°
*c	Upper Side
*d	2 to 7 mm (0.0787 to 0.276 in.)
*e	Paint Mark

Connect the No. 4 water by-pass hose to the flow shutting valve (water valve) and slide the clip to secure it.

NOTICE:

·

Make sure to slide the No. 4 water by-pass hose until it contacts the hose stopper of the flow shutting valve (water valve).

·

Make sure that the tabs of the clip are within the area shown in the illustration.
