RM36D0EC _V1 General _083136 MAINTENANCE _0403572 AIR CONDITIONING FILTER A

MAINTENANCE AIR CONDITIONING FILTER REMOVAL

PROCEDURE

Hide Display 55550 1.REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL201910,202004,_58,_083106,_0400607,RM100000001J8ON_01_0125,202004,202104,_58,_083106,_0400607,RM100000001MIPG_01_0125,202104,202304,_58,_083106,_0400607,RM100000001W6F2_01_0125,202304,202405,_58,_083106,_0400607,RM1000000029PZ2_01_0125,202405,202409,_58,_083106,_0400607,RM100000002LWUN_01_0125,202409,999999,_58,_083106,_0400607,RM100000002NG5W_01_0125,

Hide Display 88899M 2.REMOVE AIR FILTER COVER PLATE

a.

E406617C01

0,0 0,0 false

	Pinch
	Rotate in this Direction

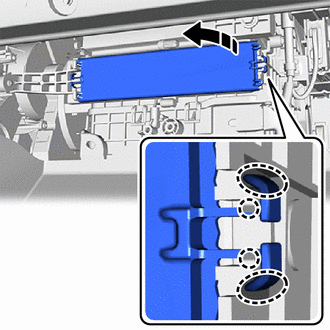

Lightly pinch the area shown in the illustration and rotate the claw in the direction indicated by the arrow shown in the illustration to detach it.

b.

E406618C01

0,0 0,0 false

V113147

Remove in this Direction

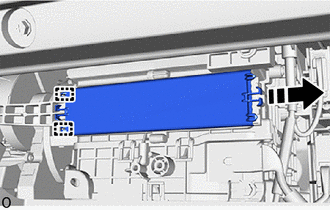

Pull in the removal direction shown in the illustration to detach the guide and remove the air filter cover plate.

Hide Display 88548B 3.REMOVE AIR FILTER CASE

a.

E406619

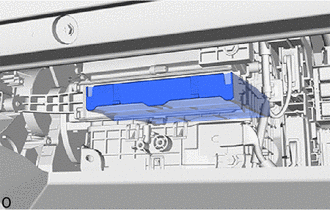

Remove the air filter case.

Hide Display 87139C 4.REMOVE CLEAN AIR FILTER

a.

E396103

Detach the guide and remove the clean air filter.
