DRIVE SHAFT / PROPELLER SHAFT  PROPELLER SHAFT ASSEMBLY  REMOVAL


PROCEDURE

Hide 58152A 2.REMOVE LOWER NO. 1 FRONT FLOOR HEAT INSULATOR

a.

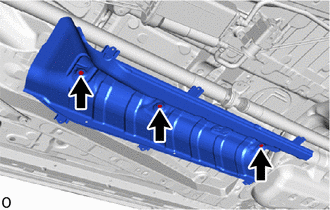

C406954

Remove the 3 nuts and lower No. 1 front floor heat insulator.


Hide 37100 3.REMOVE PROPELLER SHAFT WITH CENTER BEARING ASSEMBLY

a.

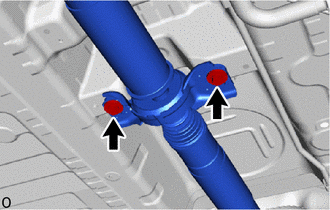

C406955

Remove the 2 bolts and 2 center No. 2 support bearing washers, and disconnect the propeller shaft with center bearing assembly.

NOTICE:
·

During the removal, do not exert excessive force on the universal joint.

·

When removing, transporting or storing the propeller shaft with center bearing assembly, do not allow the No. 2 joint angle to exceed 20°.




b.

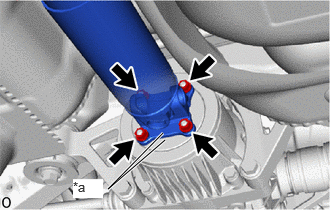

C406956C01
1.719,1.458 1.125,1.969 1.125,1.969 1.698,1.385 true 0.76,1.865 1.073,2.063 0.313,0.198 10 true *a
*a Matchmark


Place matchmarks on the differential carrier assembly and propeller shaft with center bearing assembly.


c.

Remove the 4 nuts and 4 washers, and disconnect the propeller shaft with center bearing assembly from the differential carrier assembly.


d.
C406957C01
1.635,1.49 1.969,1.896 1.969,1.896 1.635,1.406 true 0.833,0.417 0.667,0.417 false 2.031,1.865 2.344,2.063 0.313,0.198 10 true *a
*a Matchmark


Place matchmarks on the transfer assembly and propeller shaft with center bearing assembly.


e.

Remove the 4 nuts and 4 washers, and disconnect the propeller shaft with center bearing assembly from the transfer assembly.
