M20D-FKS LUBRICATION OIL PRESSURE SWITCHING VALVE REMOVAL

CAUTION / NOTICE / HINT

NOTICE:: This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.; Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION201910,999999,_V1,_083040,_0402303,RM100000001JHCH,

PROCEDURE

Hide Display 53736E 1.REMOVE FRONT FENDER APRON SEAL RH

Click hereEngine / Hybrid System>M20D-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL201910,202004,_51,_083059,_0403046,RM100000001JN1J_01_0005,202004,202304,_51,_083059,_0403046,RM100000001N2I4_01_0005,202304,202405,_51,_083059,_0403046,RM1000000029XAE_01_0005,202405,202409,_51,_083059,_0403046,RM100000002JNSM_01_0005,202409,999999,_51,_083059,_0403046,RM100000002NRBV_01_0005,

Hide Display 15250 2.REMOVE OIL PRESSURE CONTROL VALVE ASSEMBLY

a.

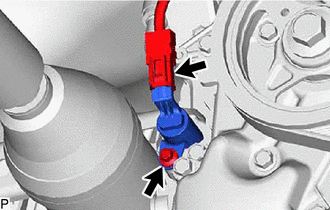

A432703

Disconnect the oil pressure control valve assembly connector.

b.

Remove the bolt and oil pressure control valve assembly from the No. 2 timing chain cover assembly.
