RM36D0EC _51 Engine / Hybrid System _083064 M20D-FKS LUBRICATION _0403246 OIL PRESSURE AND TEMPERATURE SENSOR A

M20D-FKS LUBRICATION  OIL PRESSURE AND TEMPERATURE SENSOR  INSTALLATION


PROCEDURE

Hide 89448D 1.INSTALL OIL PRESSURE AND TEMPERATURE SENSOR

a.
A426866C01

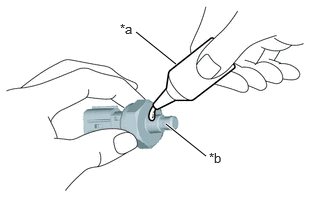

1.417,0.333 1.833,0.667 false 1.729,1.292 2.146,1.625 true 1.25,0.219 1.563,0.417 0.313,0.198 10 false *a 2.177,1.563 2.49,1.76 0.313,0.198 10 false *b
*a Adhesive 1344
*b Oil Inlet Port


Apply adhesive to 2 or 3 threads of the oil pressure and temperature sensor.

Adhesive:

Toyota Genuine Adhesive 1344, Three Bond 1344 or equivalent


NOTICE:
·

Do not apply adhesive to the oil inlet port of the oil pressure and temperature sensor.

·

To prevent contamination by foreign matter, install immediately after applying adhesive.




b.

Using a 24 mm deep socket wrench, install the oil pressure and temperature sensor.

Torque:
15 N*m (153 kgf*cm, 11 ft.*lbf)

NOTICE:

Do not start the engine within 1 hour of installation.



c.

Connect the oil pressure and temperature sensor connector.
