RM36D0EC _54 Brake _083078 BRAKE SYSTEM (OTHER) _0403152 VACUUM WARNING SWITCH(for Gasoline Model) A

BRAKE SYSTEM (OTHER)  VACUUM WARNING SWITCH(for Gasoline Model)  INSTALLATION


PROCEDURE

Hide 44696 1.INSTALL CHECK VALVE GROMMET

a.

Install a new check valve grommet to the brake booster assembly.


Hide 83390H 2.INSTALL VACUUM WARNING SWITCH ASSEMBLY

a.
C408233C01
1.344,1.75 1.5,1.917 0.156,0.167 10 true *a
*a 45°
V100136

Up

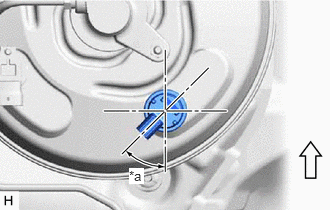

Install the vacuum warning switch assembly to the brake booster assembly as shown in the illustration.


b.

Connect the connector to the vacuum warning switch assembly.
