BRAKE SYSTEM (OTHER)  BRAKE BOOSTER(for Gasoline Model)  REASSEMBLY

89420H 1.INSTALL VACUUM SENSOR ASSEMBLY (w/ Stop And Start System)

83390H 2.INSTALL VACUUM WARNING SWITCH ASSEMBLY (for Type A)

a.

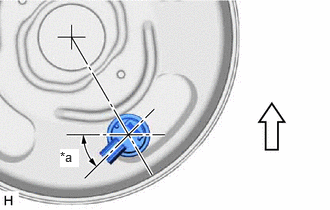

Install a new vacuum warning switch grommet to the brake booster assembly.

b.

0.625,1.552 0.823,1.74 0.198,0.188 10 true *a

*a	45°
	Up

Install the vacuum warning switch assembly to the brake booster assembly as shown in the illustration.

44730 3.INSTALL BRAKE VACUUM CHECK VALVE ASSEMBLY

a.

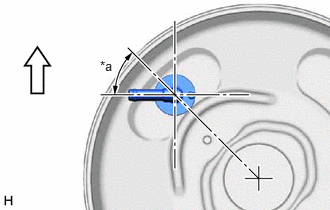

Install a new check valve grommet to the brake booster assembly.

b.

1.042,0.604 1.229,0.771 0.188,0.167 10 false *a

*a	45°
	Up

Install the brake vacuum check valve assembly to the brake booster assembly.
