RM36D0EC _54 Brake _083078 BRAKE SYSTEM (OTHER) _0403147 BRAKE MASTER CYLINDER(for Gasoline Model) A

BRAKE SYSTEM (OTHER)  BRAKE MASTER CYLINDER(for Gasoline Model)  REASSEMBLY


PROCEDURE

Hide 47299 1.INSTALL BRAKE MASTER CYLINDER RESERVOIR STRAINER

a.

Install the brake master cylinder reservoir strainer to the brake master cylinder reservoir assembly.


Hide 47230 2.INSTALL BRAKE MASTER CYLINDER RESERVOIR FILLER CAP ASSEMBLY

a.

Install the brake master cylinder reservoir filler cap assembly to the brake master cylinder reservoir assembly.


Hide 47255 3.INSTALL MASTER CYLINDER RESERVOIR GROMMET

a.
C409066C01
0,0 0,0 false
V100144

Lithium Soap Base Glycol Grease

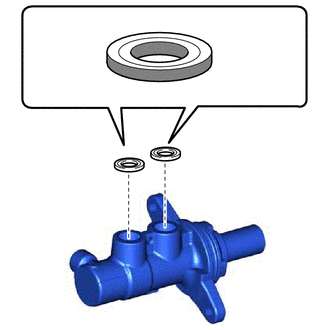

Apply a thin layer of lithium soap base glycol grease to the entire circumference of 2 new master cylinder reservoir grommets.


b.

Install the 2 master cylinder reservoir grommets to the brake master cylinder body.


Hide 47220D 4.INSTALL BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY

a.

Secure the brake master cylinder body in a vise.

NOTICE:

Place aluminum plates on the vise to prevent damage to the brake master cylinder body.



b.

Install the brake master cylinder reservoir assembly to the brake master cylinder body.

NOTICE:

Do not drop the brake master cylinder reservoir assembly.



Hide 47210U 5.INSTALL BRAKE MASTER CYLINDER STRAIGHT PIN

a.
C408247

Using a 5 mm pin punch and a hammer, tap in the brake master cylinder straight pin to secure the brake master cylinder reservoir assembly.


b.

Remove the brake master cylinder sub-assembly from the vise.
