BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS  DOWNHILL ASSIST CONTROL SWITCH  INSPECTION

2.427,1.719 2.26,1.719 2.26,1.719 2.094,1.302 true 1.375,1.76 1.458,1.76 1.458,1.76 1.625,1.323 true 2.521,1.635 2.906,1.865 0.385,0.229 10 false E 0.104,0.083 0.417,0.281 0.313,0.198 10 false *a 1.198,1.677 1.656,1.917 0.458,0.24 10 false B

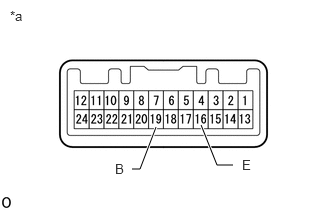

*a	Component without harness connected (Downhill Assist Control Switch)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Switch Condition	Specified Condition
16 (E) - 19 (B)	Switch pushed	Below 1 Ω
	Switch not pushed	10 kΩ or higher

HINT:

If the result is not as specified, replace the integration control and panel assembly (downhill assist control switch).
