BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS  FRONT SPEED SENSOR  REMOVAL


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH side.

·

The following procedure is for the LH side.

·

The front speed sensor rotor is a component of the front axle hub sub-assembly. If the front speed sensor rotor is malfunctioning, replace the front axle hub sub-assembly.



PROCEDURE

Hide 53876A 2.SEPARATE FRONT FENDER LINER LH

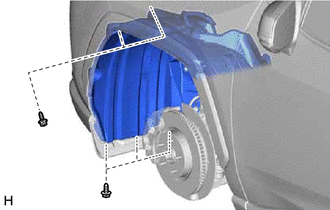

a.
C408196

Remove the 5 screws.

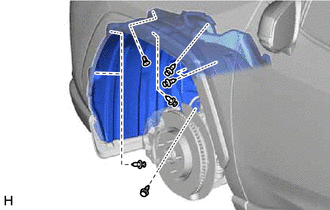

b.
C408197

Remove the 7 clips.


c.

Remove the grommet and separate the front fender liner LH.


Hide 89543 3.REMOVE FRONT SPEED SENSOR LH

a.

Fold back the front fender liner.


b.

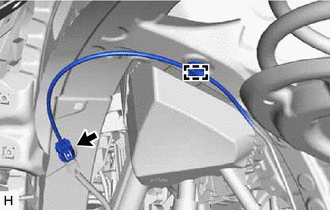

C408198

Disconnect the front speed sensor connector.


c.

Disengage the clamp.


d.

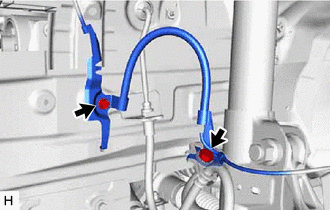

C408199

Remove the 2 bolts and separate the front flexible hose and sensor clamp.


e.

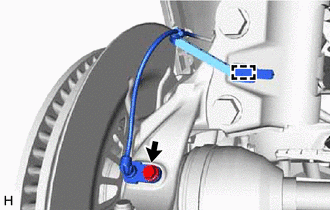

C408200

Disengage the clamp to separate the sensor clamp.


f.

Remove the bolt and front speed sensor LH from the steering knuckle.

NOTICE:
·

Keep the tip of the front speed sensor and installation hole free of foreign matter.

·

Do not rotate or apply excessive force to the front speed sensor when removing it from the steering knuckle. Rotating or applying excessive force may result in damage to the front speed sensor.
