RM36D0EC _56 Audio / Visual / Telematics _083082 PARK ASSIST / MONITORING _0403102 CLEARANCE WARNING ECU A

PARK ASSIST / MONITORING CLEARANCE WARNING ECU INSTALLATION

PROCEDURE

Hide Display 89340A 1.INSTALL CLEARANCE WARNING ECU ASSEMBLY

a.

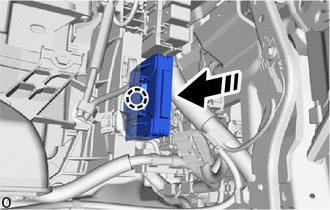

B553857C01

0,0 0,0 false

V113147

Install in this Direction

Attach the claw to install the clearance warning ECU assembly as shown in the illustration.

b.

B553856

Connect the connector.

c.

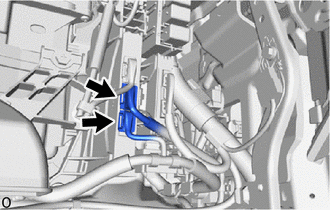

B553855

Connect the 2 connectors.

Hide Display 55433B 2.INSTALL LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201910,202004,_58,_083106,_0400607,RM100000001J8OJ_03_0031,202004,202104,_58,_083106,_0400607,RM100000001MIPH_03_0031,202104,202304,_58,_083106,_0400607,RM100000001W6F4_03_0031,202304,202405,_58,_083106,_0400607,RM1000000029PZ3_03_0031,202405,999999,_58,_083106,_0400607,RM100000002LWUO_03_0031,

Hide Display 55550 3.INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201910,202004,_58,_083106,_0400607,RM100000001J8OJ_03_0045,202004,202104,_58,_083106,_0400607,RM100000001MIPH_03_0045,202104,202304,_58,_083106,_0400607,RM100000001W6F4_03_0045,202304,202405,_58,_083106,_0400607,RM1000000029PZ3_03_0045,202405,999999,_58,_083106,_0400607,RM100000002LWUO_03_0045,

Hide Display 55607 4.INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201910,202004,_58,_083106,_0400607,RM100000001J8OJ_03_0010,202004,202104,_58,_083106,_0400607,RM100000001MIPH_03_0010,202104,202304,_58,_083106,_0400607,RM100000001W6F4_03_0010,202304,202405,_58,_083106,_0400607,RM1000000029PZ3_03_0010,202405,999999,_58,_083106,_0400607,RM100000002LWUO_03_0010,

Hide Display 62111C 5.INSTALL COWL SIDE TRIM BOARD RH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201910,202004,_58,_083106,_0400607,RM100000001J8OJ_03_0033,202004,202104,_58,_083106,_0400607,RM100000001MIPH_03_0033,202104,202304,_58,_083106,_0400607,RM100000001W6F4_03_0033,202304,202405,_58,_083106,_0400607,RM1000000029PZ3_03_0033,202405,999999,_58,_083106,_0400607,RM100000002LWUO_03_0033,

Hide Display 67913B 6.INSTALL FRONT DOOR SCUFF PLATE RH

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201910,202004,_58,_083106,_0400607,RM100000001J8OJ_03_0020,202004,202104,_58,_083106,_0400607,RM100000001MIPH_03_0020,202104,202304,_58,_083106,_0400607,RM100000001W6F4_03_0020,202304,202405,_58,_083106,_0400607,RM1000000029PZ3_03_0020,202405,999999,_58,_083106,_0400607,RM100000002LWUO_03_0020,

Hide Display 58810J 7.INSTALL CONSOLE BOX ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>INSTALLATION201910,202304,_58,_083106,_0400608,RM100000001J8OS,202304,999999,_58,_083106,_0400608,RM1000000029Q1L,
