RM36D0EC _56 Audio / Visual / Telematics _083082 PARK ASSIST / MONITORING _0403102 CLEARANCE WARNING ECU A

PARK ASSIST / MONITORING CLEARANCE WARNING ECU REMOVAL

PROCEDURE

Hide Display 58810J 1.REMOVE CONSOLE BOX ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL201910,202304,_58,_083106,_0400608,RM100000001J8OP,202304,999999,_58,_083106,_0400608,RM1000000029Q1K,

Hide Display 67913B 2.REMOVE FRONT DOOR SCUFF PLATE RH

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL201910,202004,_58,_083106,_0400609,RM100000001J8OU_01_0069,202004,202304,_58,_083106,_0400609,RM100000001MYUH_01_0069,202304,999999,_58,_083106,_0400609,RM1000000029RST_01_0069,

Hide Display 62111C 3.REMOVE COWL SIDE TRIM BOARD RH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL201910,202004,_58,_083106,_0400607,RM100000001J8ON_01_0030,202004,202104,_58,_083106,_0400607,RM100000001MIPG_01_0030,202104,202304,_58,_083106,_0400607,RM100000001W6F2_01_0030,202304,202405,_58,_083106,_0400607,RM1000000029PZ2_01_0030,202405,202409,_58,_083106,_0400607,RM100000002LWUN_01_0030,202409,999999,_58,_083106,_0400607,RM100000002NG5W_01_0030,

Hide Display 55607 4.REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL201910,202004,_58,_083106,_0400607,RM100000001J8ON_01_0018,202004,202104,_58,_083106,_0400607,RM100000001MIPG_01_0018,202104,202304,_58,_083106,_0400607,RM100000001W6F2_01_0018,202304,202405,_58,_083106,_0400607,RM1000000029PZ2_01_0018,202405,202409,_58,_083106,_0400607,RM100000002LWUN_01_0018,202409,999999,_58,_083106,_0400607,RM100000002NG5W_01_0018,

Hide Display 55550 5.REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL201910,202004,_58,_083106,_0400607,RM100000001J8ON_01_0125,202004,202104,_58,_083106,_0400607,RM100000001MIPG_01_0125,202104,202304,_58,_083106,_0400607,RM100000001W6F2_01_0125,202304,202405,_58,_083106,_0400607,RM1000000029PZ2_01_0125,202405,202409,_58,_083106,_0400607,RM100000002LWUN_01_0125,202409,999999,_58,_083106,_0400607,RM100000002NG5W_01_0125,

Hide Display 55433B 6.REMOVE LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL201910,202004,_58,_083106,_0400607,RM100000001J8ON_01_0019,202004,202104,_58,_083106,_0400607,RM100000001MIPG_01_0019,202104,202304,_58,_083106,_0400607,RM100000001W6F2_01_0019,202304,202405,_58,_083106,_0400607,RM1000000029PZ2_01_0019,202405,202409,_58,_083106,_0400607,RM100000002LWUN_01_0019,202409,999999,_58,_083106,_0400607,RM100000002NG5W_01_0019,

Hide Display 89340A 7.REMOVE CLEARANCE WARNING ECU ASSEMBLY

a.

B553855

Disconnect the 2 connectors.

b.

B553856

Disconnect the connector.

c.

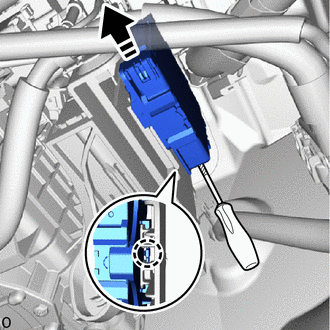

B525185C01

0,0 0,0 false

	Remove in this Direction
	Protective Tape

Using a thin-bladed screwdriver, detach the claw and remove the clearance warning ECU assembly as shown in the illustration.

HINT:: Tape the thin-bladed screwdriver tip before use.
