RM36D0EC _58 Vehicle Interior _083104 HEATING / AIR CONDITIONING _0403077 AIR CONDITIONING PANEL A

HEATING / AIR CONDITIONING  AIR CONDITIONING PANEL  REMOVAL


PROCEDURE

Hide 55900 1.REMOVE AIR CONDITIONING CONTROL ASSEMBLY

NOTICE:

When removing, do not to damage the design surface.


a.

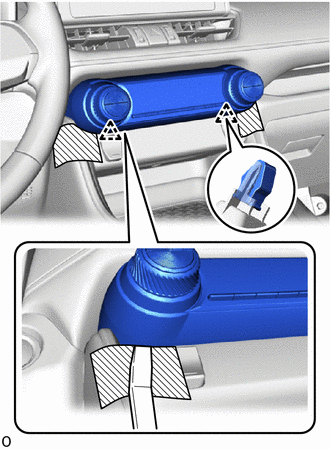

E406786C01
0,0 0,0 false
V100155

Protective Tape


Apply protective tape at the position shown in the illustration.


b.

Insert moulding remover A as shown in the illustration.


c.

Detach the clip.


d.

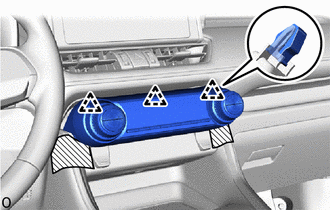

E406787

Detach the clip.


e.
E406788

Disconnect the connector and remove the air conditioning control assembly.


f.

Remove the protective tape.
